CUP HOLDER

id091700010500

Purpose, Function

• Removable cup holders have been adopted which can be installed interchangeably to different positions.

Construction

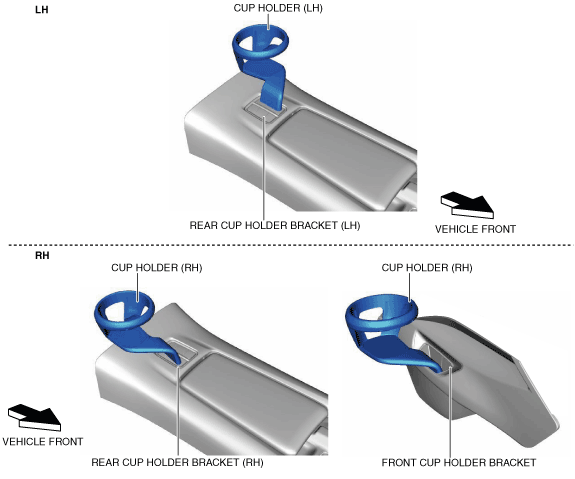

L.H.D.

• The cup holder (LH) can be placed in the rear cup holder bracket (LH).

• The cup holder (RH) can be placed in the front cup holder bracket and rear cup holder bracket (RH).

amxuun00000667

R.H.D.

• The cup holder (RH) can be placed in the rear cup holder bracket (RH).

• The cup holder (LH) can be placed in the front cup holder bracket and rear cup holder bracket (LH).

amxzzn00001050

Note

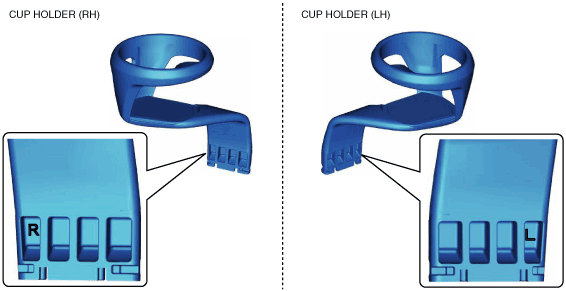

• The cup holder (LH)/cup holder (RH) can be verified by its mark at the position shown in the figure.

amxuun00001374

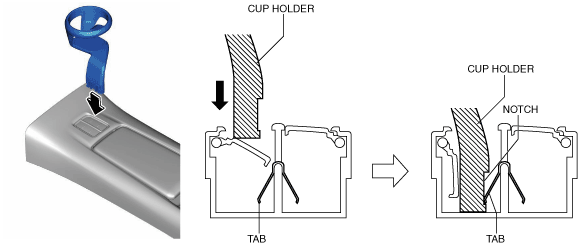

• When the cup holder is inserted into the rear cup holder bracket, the notch of the cup holder and the tab are engaged to secure the cup holder.

amxuun00000668

Fail-safe

• Not applicable
