CENTER PANEL No.2 DISASSEMBLY/ASSEMBLY

id091700564600

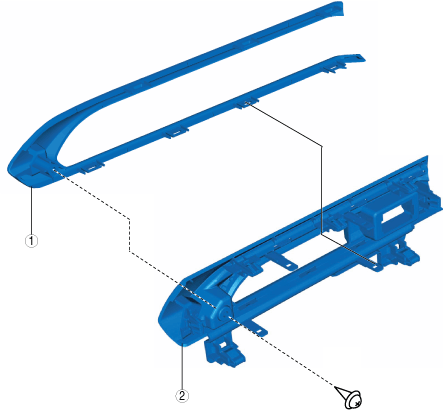

1.  Disassemble in the order indicated in the table.

amxzzw00004770

1	Bezel
2	Center panel No.2

2.  Remove the hazard warning switch when replacing the center panel No.2. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)

3.  Remove the center ventilator grille No.1 when replacing the center panel No.2. (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)

4.  Assemble in the reverse order of disassembly.
