REAR CONSOLE DISASSEMBLY/ASSEMBLY

id091700602100

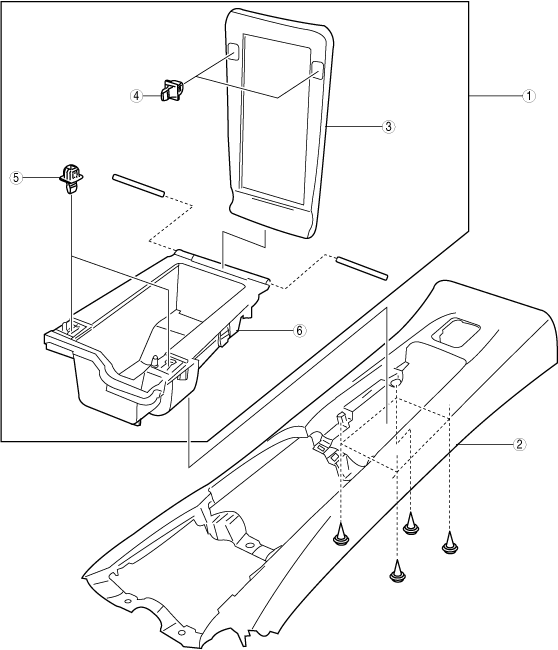

1.  Disassemble in the order indicated in the table.

amxzzw00004778

1	Rear console box component
2	Rear console
3	Rear console lid
4	Latch
5	Striker
6	Rear console box

2.  Assemble in the reverse order of disassembly.
