DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700608000

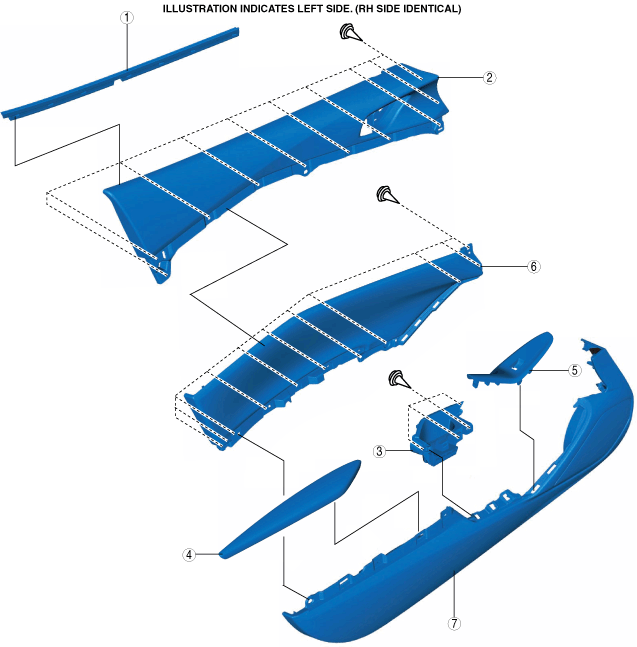

1.  Disassemble in the order indicated in the table.

amxzzw00004794

1	Weather strip
2	Upper frame
3	Recess
4	Armrest
5	Switch panel (See Switch Panel Removal Note.)
6	Center frame
7	Lower frame

2.  Remove the power window main switch when replacing the door trim (driver-side). (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

3.  Remove the power window subswitch when replacing the door trim (passenger-side). (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

4.  Assemble in the reverse order of disassembly.

Switch Panel Removal Note

1.  Detach clips A, B and C in the positions shown in the figure from the door trim.

amxuuw00005132
