REAR SIDE TRIM REMOVAL/INSTALLATION

id091700608900

Cenvertible top

1.  Open the convertible top.

2.  Remove the following parts:

(1)  Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(3)  Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

(4)  Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION.)

3.  Remove the fasteners.

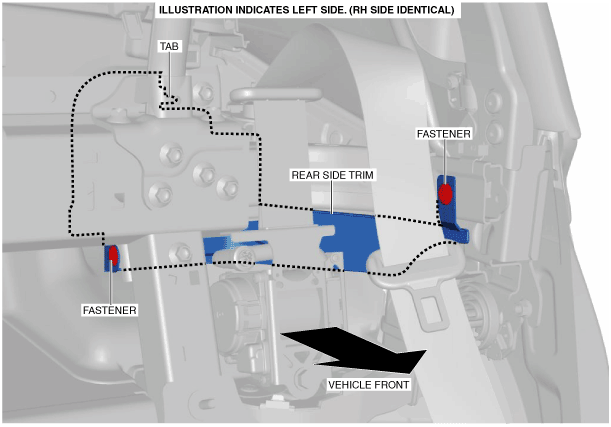

amxuuw00002801

4.  Remove the tab.

5.  Remove the rear side trim.

6.  Install in the reverse order of removal.

Retractable hardtop

1.  Using the retractable hardtop switch, keep the rear roof open.

amxzzw00004116

2.  Remove the side shelf and the rear side trim as a single unit. (See SIDE SHELF REMOVAL/INSTALLATION.).

3.  Remove the fastener.

amxzzw00004804

4.  Remove the rear side trim.

5.  Install in the reverse order of removal.
