UPPER PANEL REMOVAL/INSTALLATION

id091700613500

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MT)

(3)  Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

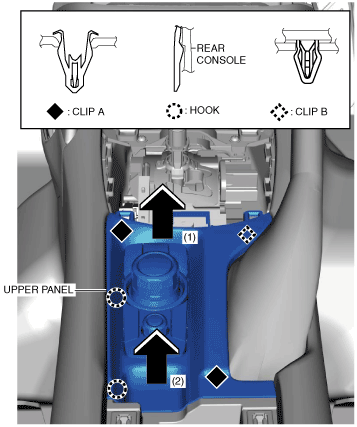

3.  Move the upper panel in the order of arrows (1) and (2) shown in the figure and detach clips A and B, and the hooks from the rear console.

amxuuw00004991

4.  Remove the drive selection switch when replacing the upper panel. (AT) (See DRIVE SELECTION SWITCH REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

5.  Remove the commander switch when replacing the upper panel. (with commander switch) (See COMMANDER SWITCH REMOVAL/INSTALLATION.)

6.  Install in the reverse order of removal.
