CONSOLE PANEL REMOVAL/INSTALLATION

id091700613600

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION.)

(2)  Shift lever knob (MT)

(3)  Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION.)

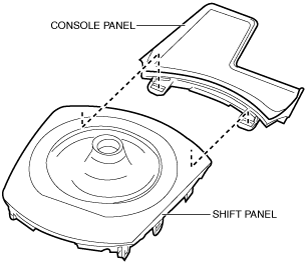

3.  Remove the console panel from the shift panel.

amxuuw00004992

4.  Install in the reverse order of removal.
