LIGHTING SYSTEMS

id091800010000


Outline

•  Front combination lights have been adopted with parts related to the front exterior lights grouped and housed together.
•  The following systems have been adopted to the headlights.
―  Auto light system (With auto light system)
―  Headlight auto leveling system
―  Running light system (With running light system)
―  Coming home light system
―  Leaving home light system
•  LEDs have been adopted for the following lights:
―  Headlight
―  Parking light
―  Running light (running light (LED type))
―  Brake light/Taillight
―  High-mount brake light
•  Rear fog light has been adopted. (With rear fog light)
•  Emergency Signal System (ESS) has been adopted.
•  A room light control system has been adopted in which illumination time and illumination level of the interior lights change.

—: Not applicable

Item

Bulb specification

(UNECE (SAE))

Spec (W) x quantity
Exterior
Headlight LO
LED*1
24
Headlight HI
LED*1
24
Parking light
LED*1
3.3
Front turn light
WY21W (7443NA)
21 × 2
Running light (bulb type) (with running light (bulb type))
W21W (7440)
21 × 2
Running light (LED type) (with running light (LED type))
LED*1
6
Side turn light*2
WY5W (—)
5 × 2
Rear turn light
WY21W (7443NA)
21 × 2
Brake light/Taillight
LED*1
4.1 / 0.95
Back-up light (without rear fog light)
W21W (7440)
21 × 2
Back-up light (with rear fog light)
W21W (7440)
21 × 1
Rear fog light (with rear fog light)
W21W (7440)
21 × 1
High-mount brake light
LED*1
1.82
License plate light
W5W (—)
5 × 2
Interior
Map light
— (—)
10 × 1
Trunk compartment light
— (—)
5 × 1

*1  :The LED for each light cannot be replaced separately. If there is any malfunction in the LED, replace each light as a single unit.
*2  :The side turn light bulb cannot be replaced as a single unit because it is integrated with the side turn light. If there is any malfunction in the side turn light bulb, replace the side turn light as a single unit.

Structural View

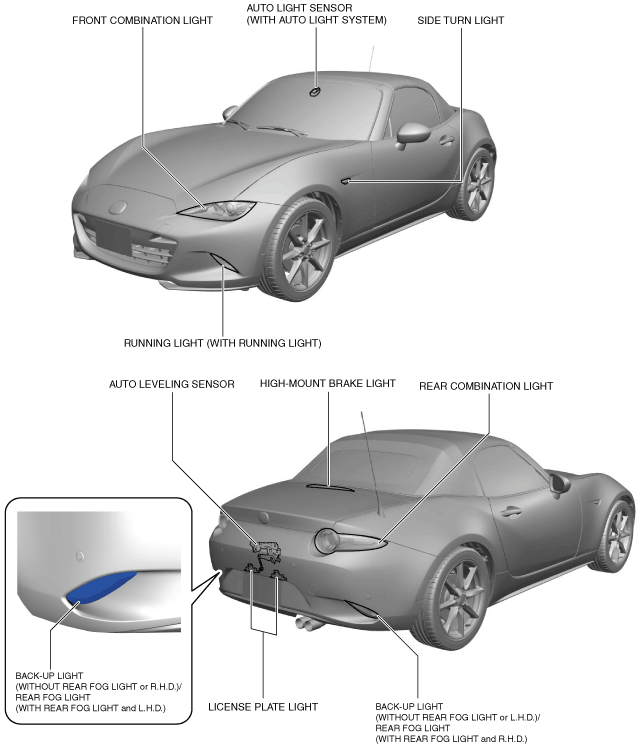

Exterior

amxzzn00000787


Interior

amxzzn00000788
