RUNNING LIGHT

id091800113500

Purpose

• The running light alerts on-coming vehicles and pedestrians that the vehicle is traveling.

Functions

• When the running light operation conditions are met, the BCM sends the running light on request signal to the electrical supply unit (ESU) and the electrical supply unit (ESU) turns the running light on.

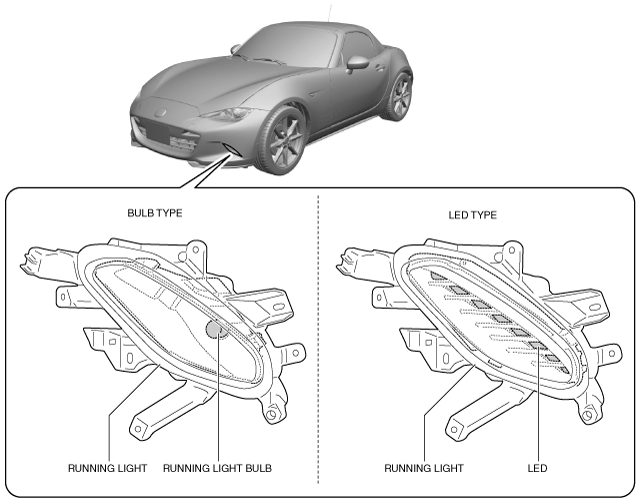

Construction

• The running light is located on the front bumper.

• A bulb type or LED type is available for the running light.

amxzzn00000738

Operation

• For the running light operation, refer to the [RUNNING LIGHT SYSTEM]. (See RUNNING LIGHT SYSTEM.)

Fail-safe

• Not applicable
