RUNNING LIGHT BULB REMOVAL/INSTALLATION

id091800450000

Running Light (Bulb Type)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Partially peel back the front mudguard No.1. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

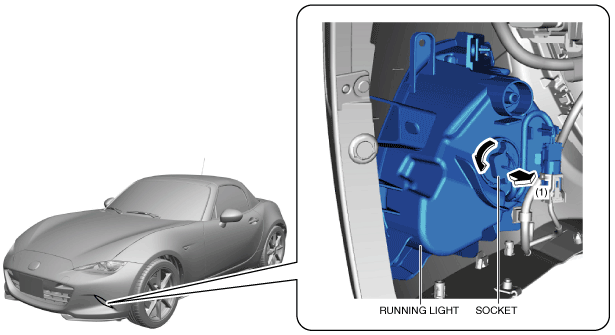

3.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

amxzzw00003183

Caution

•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).

4.  Remove the running light bulb.

amxzzw00003184

5.  Install in the reverse order of removal.

Running Light (LED Type)

Note

•  The LED for the running light cannot be replaced separately. If there is any malfunction in the LED, replace the running light as a single unit. (See RUNNING LIGHT REMOVAL/INSTALLATION.)
