LICENSE PLATE LIGHT REMOVAL/INSTALLATION

id091800801100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

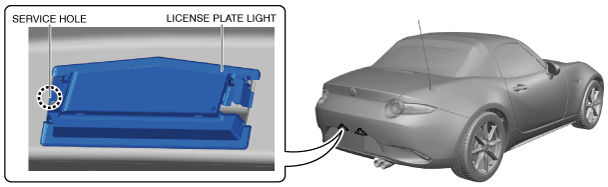

2.  Insert the remover tool into the service hole at the position shown in the figure.

amxzzw00003190

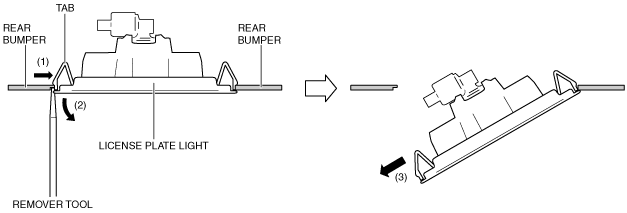

3.  While pressing the license plate light tab in the direction of arrow (1) shown in the figure using a remover tool, pull the license plate light in the direction of arrow (2) and detach the license plate light tab from the rear bumper.

amxuuw00003307

4.  Pull the license plate light in the direction of arrow (3) shown in the figure and remove it from the rear bumper.

5.  Disconnect the connector.

amxuuw00003308

6.  Install in the reverse order of removal.
