MAP LIGHT REMOVAL/INSTALLATION

id091800801200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(2)  Female wedge (See FEMALE WEDGE REMOVAL/INSTALLATION.)

(3)  Front header trim (See FRONT HEADER TRIM REMOVAL/INSTALLATION.)

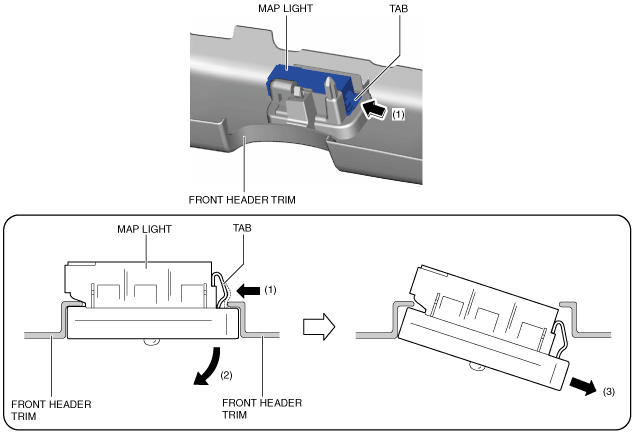

3.  While pressing the map light tab in the direction of arrow (1) shown in the figure, press the map light in the direction of arrow (2) to detach the map light tab from the front header trim.

amxuuw00003309

4.  Pull the map light in the direction of arrow (3) shown in the figure and remove it from the front header trim.

5.  Install in the reverse order of removal.
