REAR FOG LIGHT BULB REMOVAL/INSTALLATION

id091800851300

Rear Fog Light (Bulb Type)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

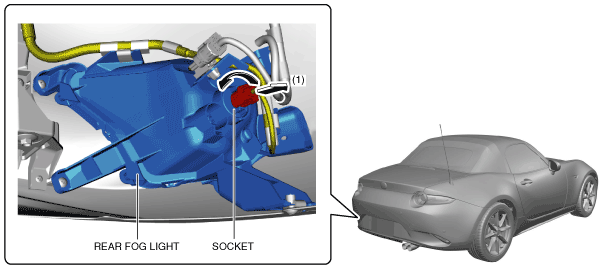

2.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

amxzzw00002959

Caution

•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).

3.  Remove the rear fog light bulb.

amxzzw00002960

4.  Install in the reverse order of removal.

Rear Fog Light (LED Type)

Note

•  The LED for the Rear fog light cannot be replaced separately. If there is any malfunction in the LED, replace the Rear fog light as a single unit. (See REAR FOG LIGHT REMOVAL/INSTALLATION.)
