WASHER NOZZLE ADJUSTMENT

id091900202300

Caution

•  Inserting a wire or a tool with a sharp edge into the washer nozzle hole and adjusting the nozzle angle with a strong force may damage the inside of the nozzle. Do not apply strong force and carefully adjust the washer nozzle.

1.  Insert a wire or a tool with a sharp edge into the washer nozzle hole and adjust the nozzle so that washer fluid is sprayed within the range shown in the figure.

amxuuw00004675

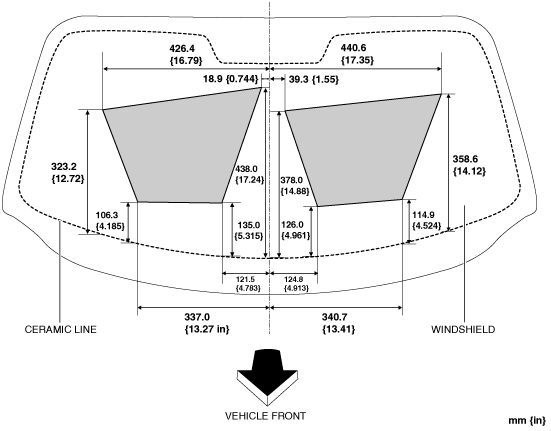

L.H.D.

amxuuw00004676

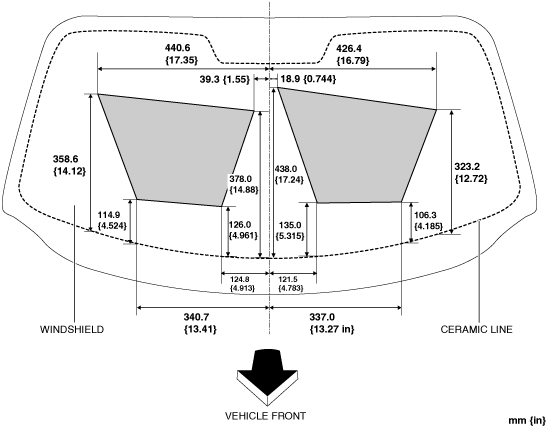

R.H.D.

amxzzw00003226
