HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION

id091900803300

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Partially peel back the front mudguard No.1 (RH). (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION.)

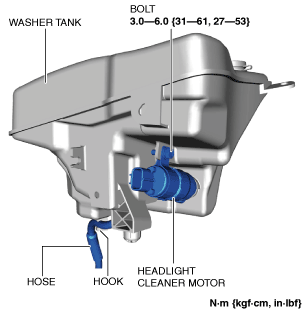

4.  Remove the bolt.

amxzzw00003240

5.  Pull the hose out from the washer tank hook.

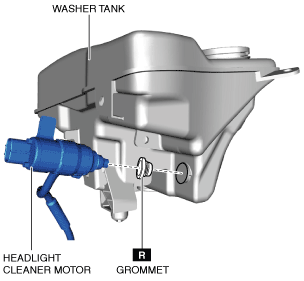

6.  Remove the headlight cleaner motor.

amxzzw00003241

7.  Install in the reverse order of removal.
