WASHER MOTOR REMOVAL/INSTALLATION

id091900805000

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Partially peel back the front mudguard No.1 (RH). (with headlight cleaner system) (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION.)

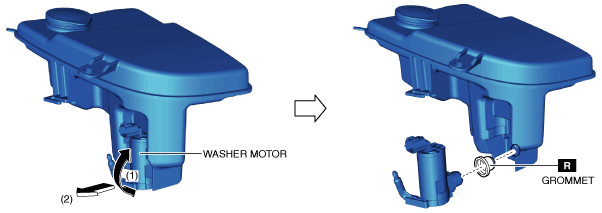

4.  While moving the washer motor in the direction of arrow (1) shown in the figure, remove it in the direction of arrow (2).

amxuuw00004713

5.  Remove the grommet.

6.  Install in the reverse order of removal.
