DOOR SPEAKER REMOVAL/INSTALLATION

id092000807200

Caution

•  If the procedure is performed while holding the door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

amxzzw00004594

4.  Remove the bolts.

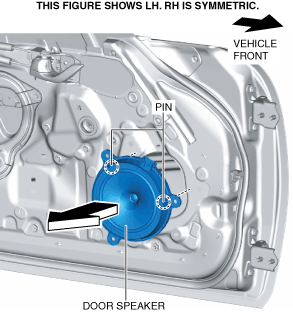

5.  Pull the door speaker in the direction of arrow shown in the figure and remove it while detaching the pins.

amxzzw00004595

6.  Install in the reverse order of removal.
