Bluetooth® UNIT REMOVAL/INSTALLATION
id092000833000
-
Caution
-
• The audio unit determines the presence/non-presence of a Bluetooth® unit and records it based on the communication status when the ignition is switched ON (engine off or on) or to the ACC position for the first time after the negative battery cable is connected.
• If the negative battery cable is connected while the audio unit has recorded the non-presence of the Bluetooth® unit and thereafter a Bluetooth® unit is installed, the installed Bluetooth® unit will not operate.
• When installing or removing the Bluetooth® unit, always disconnect the negative battery cable, and after the servicing is completed, switch the ignition to ACC or ON (engine off or on) to allow the audio unit to record the presence/non-presence of the Bluetooth® unit.
-
Note
-
• The Bluetooth® pairing information recorded in the Bluetooth® unit cannot be written to a new Bluetooth® unit. Therefore, the Bluetooth® pairing information will be eliminated if the Bluetooth® unit is replaced. Before replacing the Bluetooth® unit, explain to the customer that the Bluetooth® pairing resetting is required.
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the scuff plate. (RH) (See SCUFF PLATE REMOVAL/INSTALLATION.)
3. Remove the front side trim. (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
4. Remove the bonnet release lever. (See BONNET RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION.)

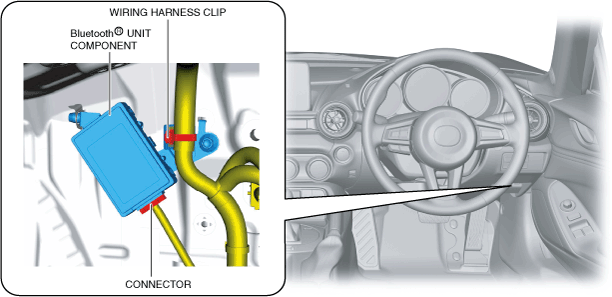

5. Pull out the wiring harness clip.
6. Disconnect the connector.
7. Remove the bolt.
8. Move the Bluetooth® unit component in the direction of arrow (1) shown in the figure and detach the guide from the body.
9. Move the Bluetooth® unit component in the direction of arrow (2) shown in the figure, detach the positioning pin from the body, and remove the Bluetooth® unit component.
10. Remove the screws.
11. Remove the Bluetooth® unit.
12. Install in the reverse order of removal.
