ROD ANTENNA REMOVAL/INSTALLATION

id092000880300

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the service hole cover on the trunk side trim (RH).

amxuuw00002939

3.  Remove the nut.

amxuuw00002940

4.  Disconnect the connector.

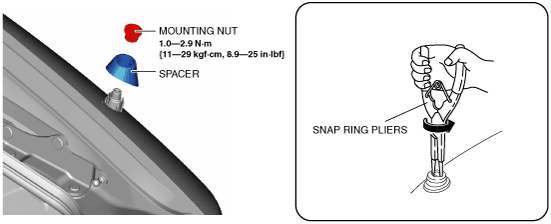

5.  Remove the mounting nut using snap ring pliers.

amxuuw00002941

6.  Remove the spacer.

7.  Remove the rod antenna in the direction of the arrow shown in the figure.

amxuuw00002942

8.  Install in the reverse order of removal.
