CD PLAYER [WITHOUT CENTER DISPLAY]

id0920z9113700


Purpose, Function

•  The CD player sends the audio signal and music information, such as the album name and artist name of the inserted CD, to the audio unit.

Specification

Type

Playback function file
Music/MP3/WMA/AAC CD player
•  Music data (CD-DA)
•  MP3/WMA (Windows Media Audio)/AAC (Advanced Audio Coding) files


Construction

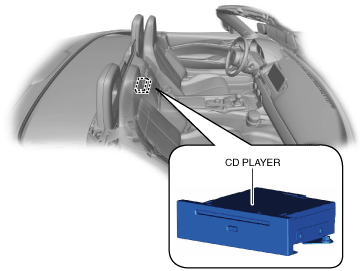

•  The CD player is located in the back trim.
amxzzn00000978

Input/output signal table

Terminal

Signal
A
Ground
B
—
C
—
D
Illumination power supply (-)
F
—
G
Local MS-CAN_H
H
Local MS-CAN_L
J
—
L
CD audio output LH (+)
N
CD audio output LH (-)
P
CD audio output RH (+)
R
CD audio output RH (-)
S
—
T
—
U
—
V
—
W
TNS (Parking Lights) signal input
X
—
Y
ACC
Z
B+


Operation

•  For the CD player operation, refer to the [ENTERTAINMENT SYSTEM]. (See ENTERTAINMENT SYSTEM [WITHOUT CENTER DISPLAY].)

Fail-safe

•  Not applicable
