STEERING SWITCH [WITH CENTER DISPLAY]

id0920zz010500


Purpose, Function

•  Operation of the entertainment system and changing of the trip computer system display are possible without a change in driving posture.

Construction

•  The steering switch is located on the spoke of the steering wheel.
•  The resistance is built into each switch.

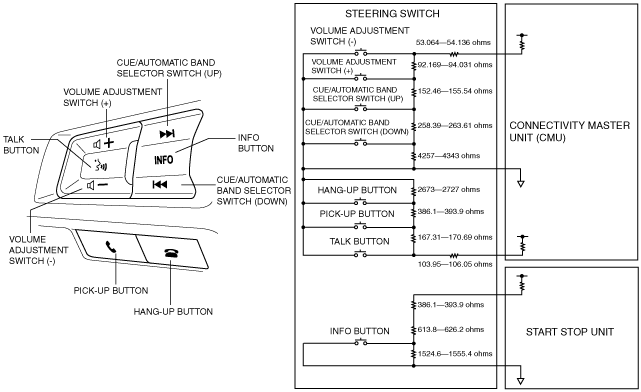

•  The steering switch consists of the following buttons and switches.
―  Volume adjustment switch (+) and (-)
―  Cue/automatic band selector (up) and (down)
―  INFO button
―  Talk button
―  Pick-up button
―  Hang-up button
amxuun00000657

Operation

Switch name

Operation
Volume adjustment switch
Audio volume can be adjusted.
Cue/Automatic band selector switch
Cues the CD or switches radio stations.
INFO button
Trip computer system display can be changed. For the display content, refer to the [TRIP COMPUTER INFORMATION SYSTEM]. (See TRIP COMPUTER INFORMATION SYSTEM.)
Talk button
Initiates voice recognition mode.
Pick-up button
During incoming call
•  Receives phone call
Other than during incoming call
•  Switches display of center display to call history screen.
Hang-up button
Hangs up the phone call.


Fail-safe

•  Not applicable
