PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION

id092200023500

1.  Using the retractable hardtop switch, keep the front roof half-open. (retractable hardtop)

amxzzw00004123

2.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Open the convertible top. (convertible top)

4.  Remove the following parts:

(1)  Scuff plate (RH) (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Tire house trim (RH) (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(3)  Front seat back bar garnish (RH) (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION.)

(4)  Quarter trim (RH) (See QUARTER TRIM REMOVAL/INSTALLATION.)

5.  Remove the service hole cover.

amxzzw00003283

6.  Remove the fasteners.

amxzzw00003284

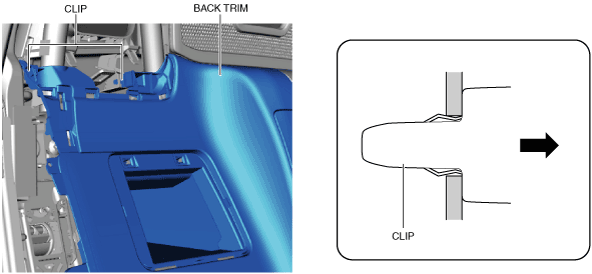

7.  Detach the clips using the fastener remover.

amxzzw00003285

8.  Partially peel back the back trim in the direction of the arrow shown in the figure.

amxzzw00003286

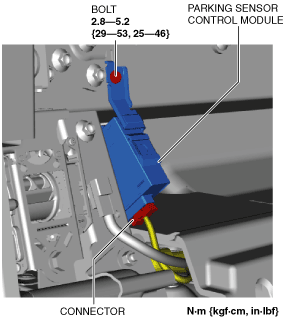

9.  Disconnect the connector.

amxzzw00003287

10.  Remove the bolt.

11.  Remove the parking sensor control module.

12.  Install in the reverse order of removal.
