PARKING SENSOR BUZZER REMOVAL/INSTALLATION

id092200023900

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Driver-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

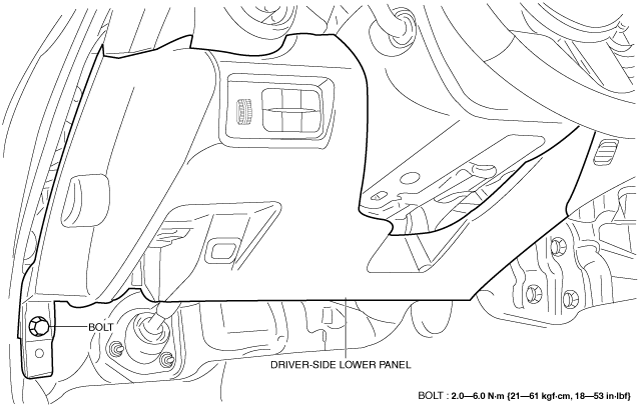

3.  Remove the bolt.

amxzzw00003738

4.  Move the driver-side lower panel in the direction of the arrow shown in the figure to a position where the parking sensor buzzer can be removed and detach the clips and hook from the dashboard.

amxzzw00003739

5.  Partially peel back the driver-side lower panel to the position where the parking sensor buzzer is visible.

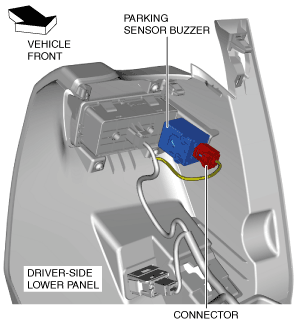

6.  Disconnect the connector.

amxzzw00003740

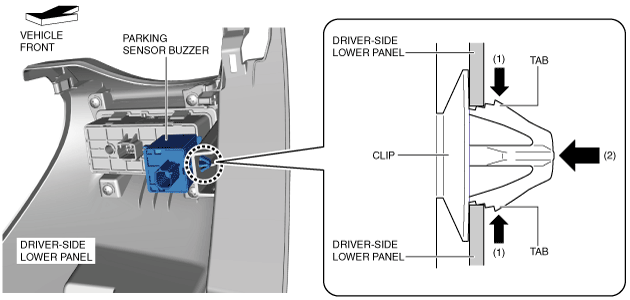

7.  While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the driver-side lower panel.

am2zzw00009283

8.  Remove the parking sensor buzzer.

amxzzw00003289

9.  Install in the reverse order of removal.
