PARKING SENSOR CONTROL MODULE

id092200024400

Purpose

• The parking sensor control module activates the parking sensor buzzer based on information from the ultrasonic sensor.

Function

• The parking sensor control module controls the parking sensor system based on the following signals.

Signal name

Sending module/part name

Communication method

Vehicle speed signal

Instrument cluster

Hard wire

Back-up light signal

Electrical supply unit (ESU)

Signal name	Sending module/part name	Communication method
Vehicle speed signal	Instrument cluster	Hard wire
Back-up light signal	Electrical supply unit (ESU)

Construction

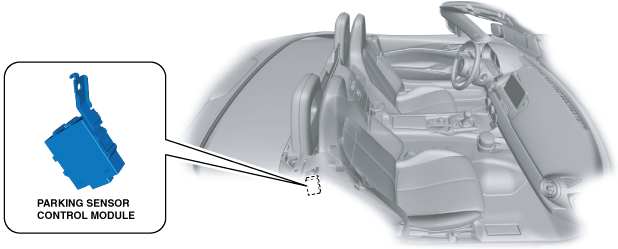

• The parking sensor control module is located inside the back trim.

amxzzn00001355

Operation

• For the parking sensor control module operation, refer to the [PARKING SENSOR SYSTEM]. (See PARKING SENSOR SYSTEM.)

Fail-safe

• Not applicable
