ODOMETER/TRIPMETER

id092200032900

Purpose

Functions

Odometer calculation function

•  The instrument cluster calculates the total traveled distance based on the traveled distance signal from the PCM and the stored traveled distance, and displays it.

•  The total traveled distance which can be displayed is from 0 to 999999.

Tripmeter A/B calculation function

Without multi-information display

•  The instrument cluster calculates the traveled distance based on the traveled distance signal from the PCM and the traveled distance from when the tripmeter is reset, and displays it.

•  There are A and B tripmeters and the display for each can be switched with each press of the tripmeter switch.

•  If the tripmeter switch is continuously pressed for approx. 1 s or more, the tripmeter traveled distance is reset 0.0.

•  The traveled distance which can be displayed is from 0.0 to 99999.9. After 99999.9, it returns to 0.0.

With multi-information display

•  The instrument cluster calculates the traveled distance based on the traveled distance signal from the PCM and the traveled distance from when the tripmeter is reset, and displays it.

•  There are A and B tripmeters and the display for each can be switched with each press of the INFO button.

•  If the INFO button is continuously pressed for approx. 1.5 s or more while tripmeter A or B is displayed, the tripmeter traveled distance is reset 0.0.

•  The traveled distance which can be displayed is from 0.0 to 9999.9. After 9999.9, it returns to 0.0.

Construction

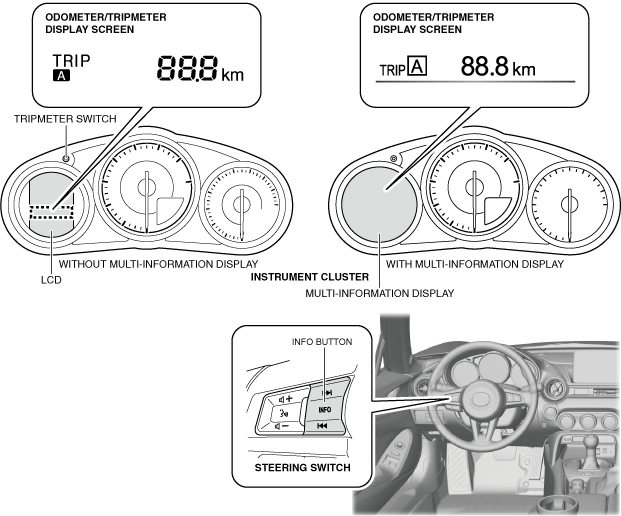

•  The odometer/tripmeter is displayed in the LCD (without multi-information display)/multi-information display (with multi-information display) of the instrument cluster.

amxzzn00001364

Operation

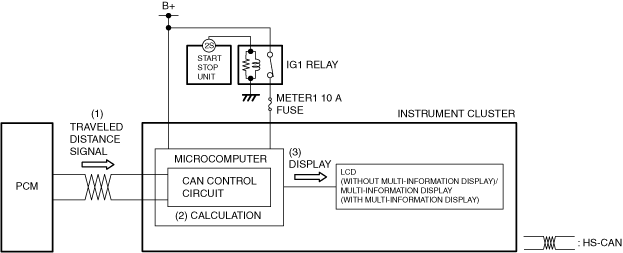

1.  When the instrument cluster receives (1) the traveled distance signal from the PCM while the ignition is switched ON (engine on), it adds up (2) the total traveled distance (odometer) data which is recorded, traveled distance over a specific interval (tripmeter), and the traveled distance.

2.  The instrument cluster displays (3) the calculated travel distance in the LCD (without multi-information display)/multi-information display (with multi-information display).

amxzzn00001365

Odometer/tripmeter switching operation

Without multi-information display

•  The instrument cluster switches the odometer/tripmeter display when a tripmeter switch on is detected.

•  The instrument cluster returns the traveled distance display to 0.0 when a tripmeter switch on is detected for approx. 1 s or more while tripmeter A or B is displayed.

amxzzn00001366

With multi-information display

•  For details on the odometer/tripmeter switching operation, refer to [MULTI-INFORMATION DISPLAY]. (See MULTI-INFORMATION DISPLAY.)

Data reset

Caution

•  Previously stored data cannot be recovered after it is reset. When resetting data, explain the reset items to the customer and reset the data after obtaining their consensus.

•  The following information can be reset all at once. Refer to the Workshop Manual [INSTRUMENT CLUSTER DATA RESET PROCEDURE] for the resetting procedure.

―  Average fuel economy

―  Average vehicle speed

―  TRIP value
