INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE

id092200033600

Caution
•  The personalization feature may not be set correctly if [Not equipped] is selected in the setting displayed on the M-MDS. Do not select [Not equipped] in the setting displayed on the M-MDS.

Turn And Hazard Indicator Alarm


Using M-MDS

1.  Connect the M-MDS to the DLC-2.

2.  After vehicle identification, select the following from the M-MDS initialization screen.

(1)  “Module programming”
(2)  “Programmable Parameters”

3.  Then, select “IC” from the screen menu.

4.  Select an item name, and than select option.

Mazda Modular Diagnostic System (M-MDS) display

Function

Initial setting

Setting contents

Control unit
Turn Signal Volume.
The volume of the turn and hazard indicator alarm can be changed.
Low
Low / High
Instrument cluster


Using center display

•  For the setting procedure of the personalization features using the center display, refer to “CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE”. (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Lights-on Reminder Warning Alarm


Using M-MDS

1.  Connect the M-MDS to the DLC-2.

2.  After vehicle identification, select the following from the M-MDS initialization screen.

(1)  “Module programming”
(2)  “Programmable Parameters”

3.  Then, select “IC” from the screen menu.

4.  Select an item name, and than select option.

Mazda Modular Diagnostic System (M-MDS) display

Function

Initial setting

Setting contents

Control unit
Lights-on Reminder Volume.
The volume for the lights-on reminder warning alarm can be changed.
High
OFF / Low / High
Instrument cluster


Using center display

•  For the setting procedure of the personalization features using the center display, refer to “CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE”. (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Temperature

Note
•  When the ambient temperature display is switched, the set engine coolant temperature gauge display is also changed.

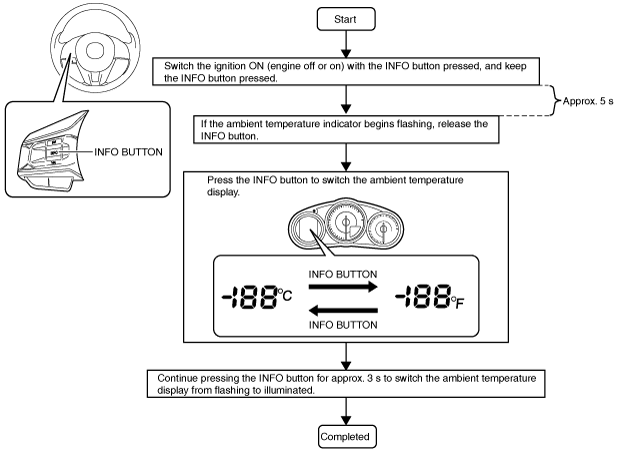

Using instrument cluster (without center display)

amxuuw00004654


Using center display

•  For the setting procedure of the personalization features using the center display, refer to “CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE”. (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)


Distance


Using center display

•  For the setting procedure of the personalization features using the center display, refer to “CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE”. (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE.)
