LIGHTS-ON REMINDER WARNING INDICATION

id092200043200


Purpose

•  The lights-on reminder warning indication warns the driver that the TNS (parking lights) and headlights are not turned off.

Functions

•  The instrument cluster controls the lights-on reminder warning indication based on the following signals:

Signal name

Sending module/part name

Communication method
TNS (parking lights) signal
Start stop unit
HS-CAN
Driver's side door latch switch on (door open) signal
BCM

•  If the ignition is switched off or ACC when all the above vehicle condition signals are received, the instrument cluster displays the lights-on reminder warning indication.

Structure/Construction

•  The lights-on reminder warning indication is displayed in the multi-information display of the instrument cluster.
amxzzn00001439

Operation

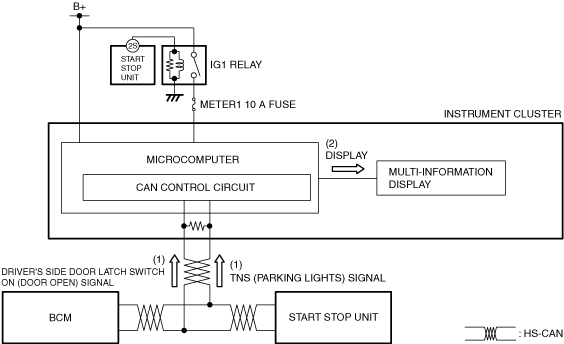

1.  When the instrument cluster receives (1) a TNS (parking lights) signal from the start stop unit and a driver's side door latch switch on (door open) signal from the BCM via CAN communication while the ignition is switched ACC or off, it displays (2) the lights-on reminder warning indication in the multi-information display of the instrument cluster.

amxzzn00001440

Fail-safe

•  Not applicable
