ULTRA HIGH-TENSION STEEL [CONSTRUCTION]

id098007745600


Characteristics of Ultra High-Tensile Steel Plates

•  Ultra high-tensile steel plates have enhanced tensile strength compared to previous high-tensile steel plates.
•  Because the strength is maintained even though the plates are thin-walled, the ultra high-tensile steel plates are used for the frames and the main frame parts which form the cabin, reducing the weight of the vehicle.
•  Enhanced shock absorption has improved the safety.

Range of Use and Cautions for Service

•  Because the ultra high-tensile steel is hard and it may be difficult to reform, when extracting the damaged part using a frame repair machine, perform the work verifying that other parts are not affected.
•  When drilling welded parts, use a well-ground drill bit.
•  After welding, inspect the weld strength. If adhesion is poor, perform arc welding (plug welding).

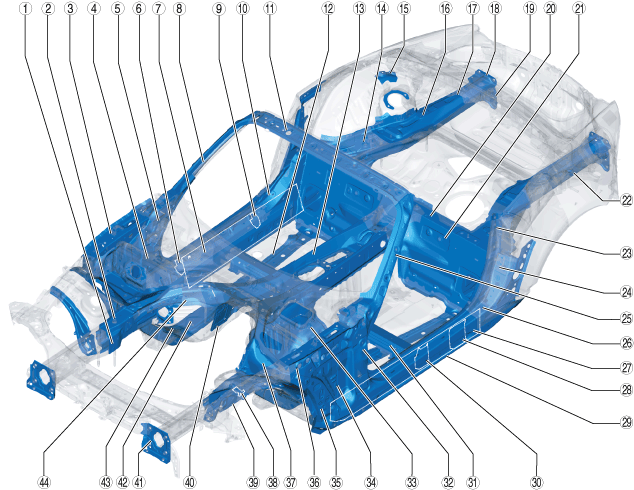

amxuub00000043

No.

Part name

Strength (MPa {kgf/cm2, psi})
1
Front side frame component (front)
980 {9993, 142137}
2
Front side frame (inner)
590 {6016, 85572}
3
Cowl upper plate
590 {6016, 85572}
4
Side sill (inner) reinforcement (front)
980 {9993, 142137}
5
Front pillar (inner) component
1180 {12032, 171145}
6
Side sill reinforcement (front)
590 {6016, 85572}
7
Side sill reinforcement
590 {6016, 85572}
8
Front pillar reinforcement component
780 {7954, 113130}
9
Side sill reinforcement (center)
780 {7954, 113130}
10
Side sill reinforcement (rear)
780 {7954, 113130}
11
Front header
590 {6016, 85572}
12
Front B frame
780 {7954, 113130}
13
Tunnel reinforcement component
1500 {15296, 217557}
14
Rear frame reinforcement
780 {7954, 113130}
15
Rear pillar (inner) component
590 {6016, 85572}
16
Rear side frame (upper, front)
590 {6016, 85572}
17
Rear side frame (upper, rear)
590 {6016, 85572}
18
Floor side panel No.1
980 {9993, 142137}
19
Rear bumper bracket
590 {6016, 85572}
20
Crossmember No.3 component
1180 {12032, 171145}
21
Center floor panel component
1180 {12032, 171145}
22
Rear side frame (rear)
590 {6016, 85572}
23
Corner junction component
980 {9993, 142137}
24
Rear side frame (front)
980 {9993, 142137}
25
Front pillar (outer)
590 {6016, 85572}
26
Rear fender panel
980 {9993, 142137}
27
Side sill (inner) component
1180 {12032, 171145}
28
Side sill (inner) reinforcement (rear)
590 {6016, 85572}
29
Side sill (outer)
780 {7954, 113130}
30
Side sill (inner) reinforcement (center)
590 {6016, 85572}
31
Crossmember No.2
980 {9993, 142137}
32
Hinge pillar (outer)
590 {6016, 85572}
33
Front floor component
590 {6016, 85572}
34
Cowl side panel
590 {6016, 85572}
35
Cowl side junction
590 {6016, 85572}
36
Cowl side reinforcement
590 {6016, 85572}
37
Front frame (rear) reinforcement
590 {6016, 85572}
38
Wheel apron component
590 {6016, 85572}
39
Front side frame (outer)
590 {6016, 85572}
40
Dash panel (lower)
980 {9993, 142137}
41
Bumper bracket
980 {9993, 142137}
42
Front frame component
980 {9993, 142137}
43
Floor reinforcement
980 {9993, 142137}
44
Front frame (outer)
590 {6016, 85572}
