SHROUD PANEL COMPONENT INSTALLATION [PANEL REPLACEMENT]

id098008602500

Symbol Marks

amxuub00000170

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

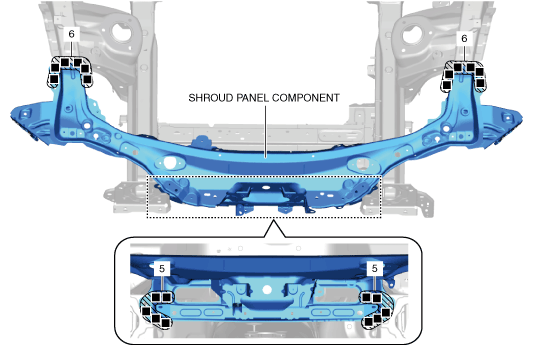

4.  Plug weld the 22 locations indicated shown in the figure, then install the shroud panel component.

amxzzb00000197
