CROSSMEMBER No.1 REMOVAL [PANEL REPLACEMENT]

id098008603500

Symbol Marks

amxuub00000192

Removal Procedure

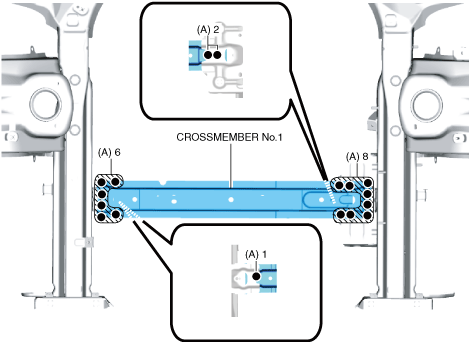

1.  Drill the 17 locations indicated by (A) shown in the figure.

amxzzb00000129

2.  Remove the crossmember No.1.

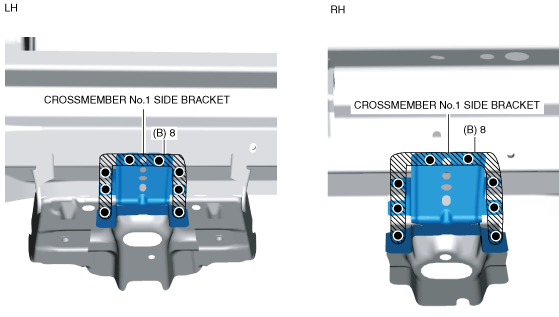

3.  Drill the 8 locations indicated by (B) shown in the figure, then remove the crossmember No.1 side bracket.

amxzzb00000130

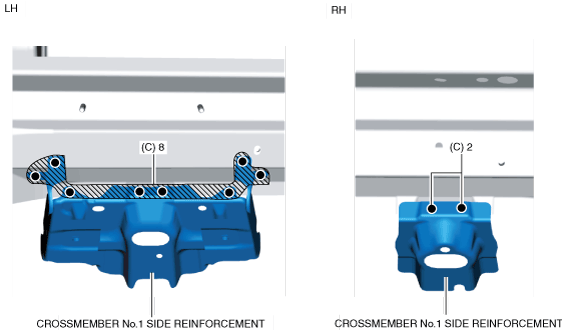

4.  Drill the 8 locations (LH), 2 locations (RH) indicated by (C) shown in the figure, then remove the crossmember No.1 side reinforcement.

amxzzb00000131
