CROSSMEMBER No.1 INSTALLATION [PANEL REPLACEMENT]

id098008603600

Symbol Marks

amxuub00000056

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

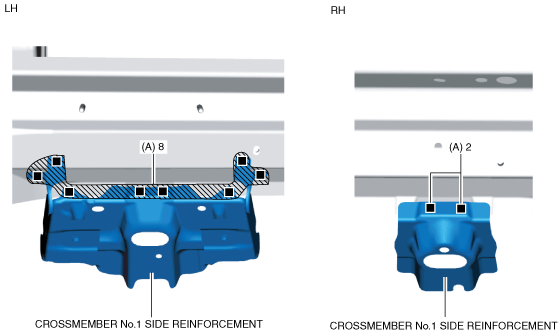

4.  Plug weld the 8 locations (LH), 2 locations (RH) indicated by (A) shown in the figure, then install the crossmember No.1 side reinforcement.

amxzzb00000135

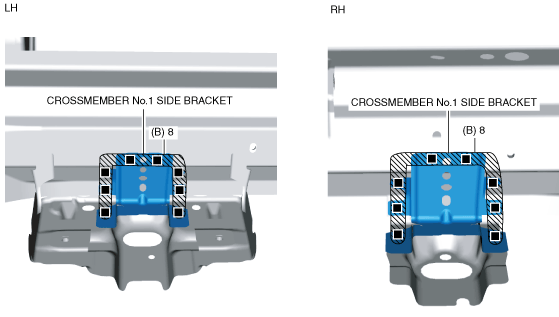

5.  Plug weld the 8 locations indicated by (B) shown in the figure, then install the crossmember No.1 side bracket.

amxzzb00000137

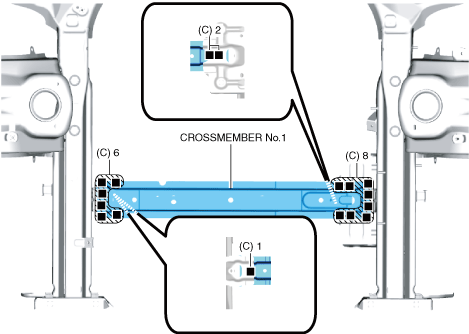

6.  Plug weld the 17 locations indicated by (C) shown in the figure, then install the crossmember No.1.

amxzzb00000136
