REAR SIDE FRAME (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008608100

Symbol Marks

amxuub00000071

Removal Procedure

1.  Remove the floor side panel. (See FLOOR SIDE PANEL REMOVAL [PANEL REPLACEMENT].)

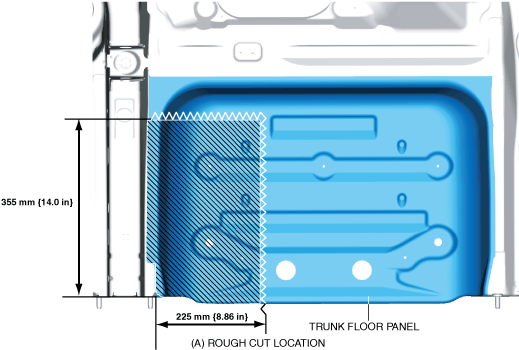

2.  Rough cut the location indicated by (A) shown in the figure, then remove the part of trunk floor panel.

amxuub00000198

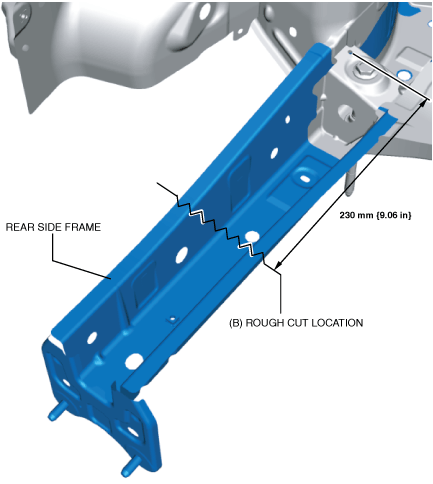

3.  Rough cut the location indicated by (B) shown in the figure.

amxuub00000199

4.  Rough cut and remove the damaged part of the rear side frame.
