CORNER PLATE REMOVAL [PANEL REPLACEMENT]

id098008610400

Symbol Marks

amxuub00000077

Removal Procedure

1.  Drill the 18 locations indicated shown in the figure.

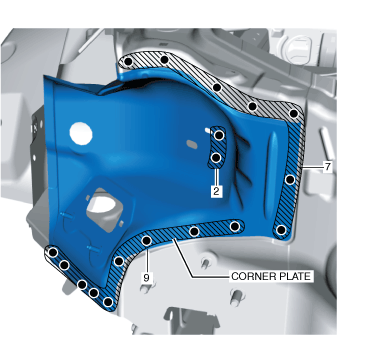

amxuub00000208

2.  Remove the corner plate.
