REAR FENDER RAIN RAIL REMOVAL [PANEL REPLACEMENT]

id098008611000

Symbol Marks

amxuub00000126

Removal Procedure

Convertible top

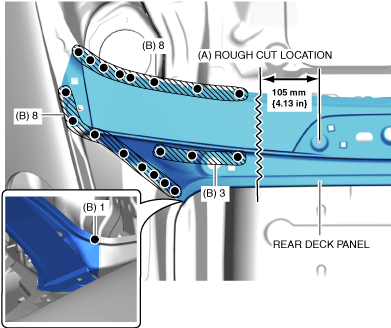

1.  Rough cut the location indicated by (A) shown in the figure.

2.  Drill the 20 locations indicated by (B) shown in the figure, then remove the rear deck panel.

amxuub00000210

3.  Remove the rear fender panel. (See REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT].)

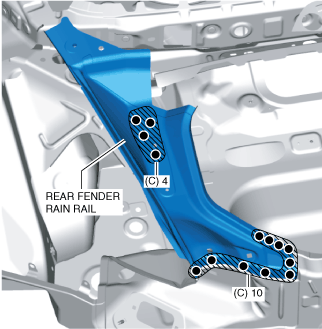

4.  Drill the 14 locations indicated shown in the figure.

amxzzb00000178

5.  Remove the rear fender rain rail.

Retractable Hardtop

1.  Remove the rear fender panel. (See REAR FENDER PANEL REMOVAL [PANEL REPLACEMENT].)

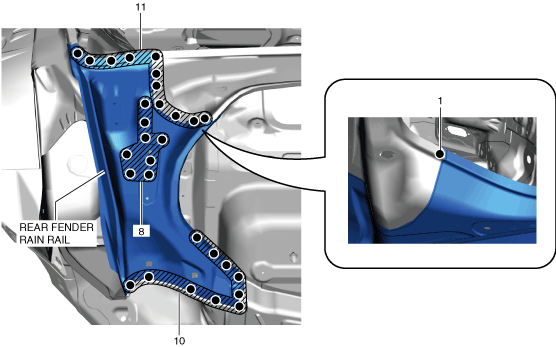

2.  Drill the 30 locations indicated shown in the figure.

amxzzb00000179

3.  Remove the rear fender rain rail.
