HINGE PILLAR (OUTER) REMOVAL [PANEL REPLACEMENT]

id098008613500

Symbol Marks

amxuub00000089

Removal Procedure

Caution

•  Avoid cutting with a blowtorch or similar tools as the insulator is flammable shown in the figure.

amxuub00000090

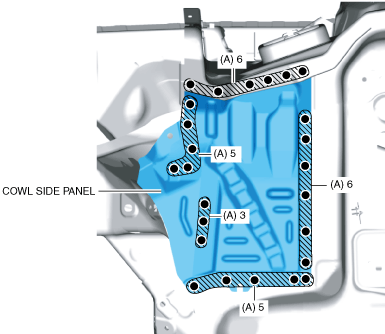

1.  Drill the 25 locations indicated by (A) shown in the figure, then remove the cowl side panel.

amxzzb00000172

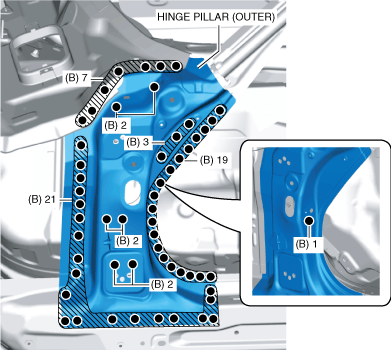

2.  Drill the 57 locations indicated by (B) shown in the figure, then remove the hinge pillar (outer).

amxzzb00000173

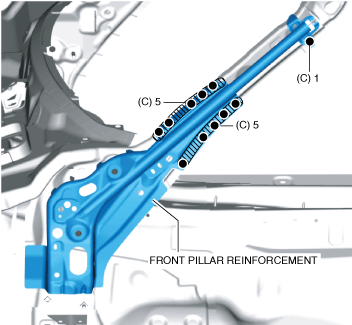

3.  Drill the 11 locations indicated by (C) shown in the figure, then remove the front pillar reinforcement.

amxuub00000223

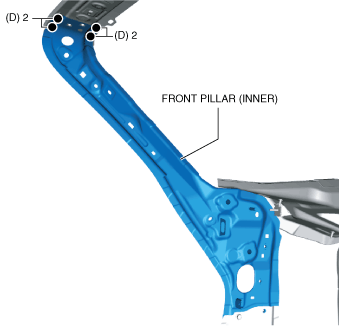

4.  Drill the 4 locations indicated by (D) from the room side shown in the figure, then remove the front pillar (inner).

amxzzb00000174
