FRONT FRAME COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008616400

Symbol Marks

amxuub00000098

Removal Procedure

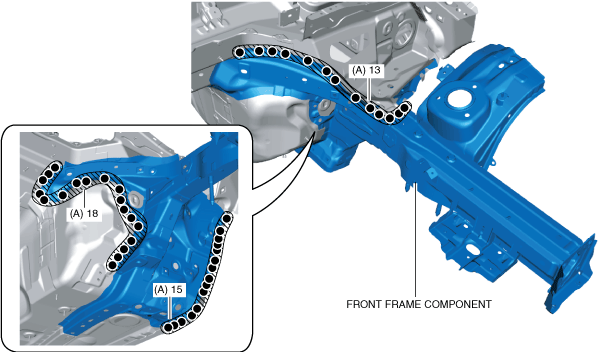

1.  Drill the 46 locations indicated by (A) from engine room shown in the figure.

amxzzb00000168

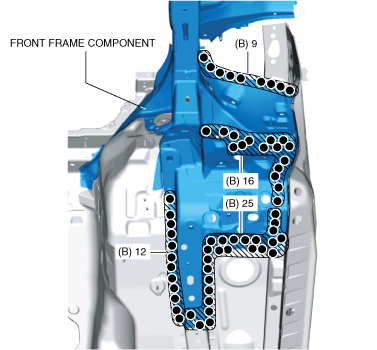

2.  Drill the 62 locations indicated by (B) shown in the figure.

amxzzb00000169

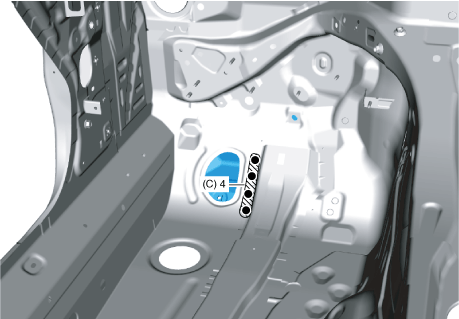

3.  Drill the 4 locations indicated by (C) from the room shown in the figure.

ardjjb00000184

4.  Remove the front frame component.
