TORQUE BOX COMPONENT REMOVAL [PANEL REPLACEMENT]

id098008616800

Symbol Marks

amxuub00000104

Removal Procedure

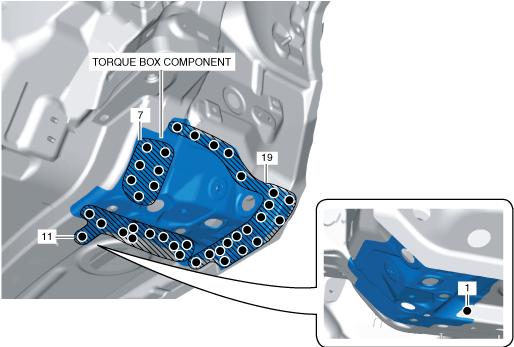

1.  Drill the 38 locations indicated shown in the figure.

amxzzb00000166

2.  Remove the torque box component.
