FRONT SIDE FRAME (PARTIAL CUTTING) REMOVAL [PANEL REPLACEMENT]

id098008742100

Symbol Marks

amxuub00000126

Removal Procedure

LH

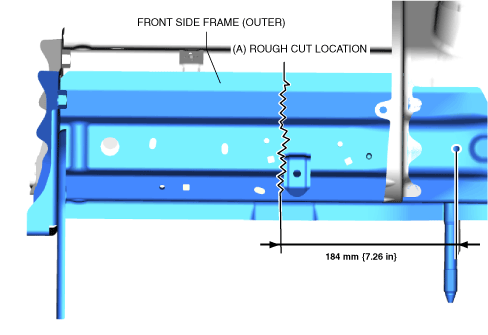

1.  Rough cut the location indicated by (A) shown in the figure.

amxzzb00000140

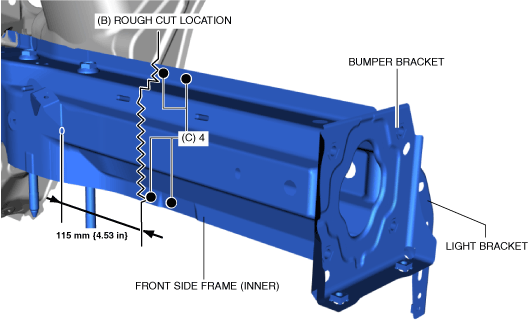

2.  Rough cut the location indicated by (B) shown in the figure.

3.  Drill the 4 locations indicated by (C) shown in the figure, then remove the front side frame (outer), bumper bracket, light bracket and front side frame (inner).

amxuub00000128

RH

1.  Rough cut the location indicated by (A) shown in the figure.

amxuub00000129

2.  Rough cut the location indicated by (B) shown in the figure.

3.  Drill the 6 locations indicated by (C) shown in the figure, then remove the front side frame (outer), bumper bracket, light bracket and front side frame (inner).

amxzzb00000165
