REAR END PANEL REMOVAL [PANEL REPLACEMENT]

id098008744500

Symbol Marks

amxuub00000143

Removal Procedure

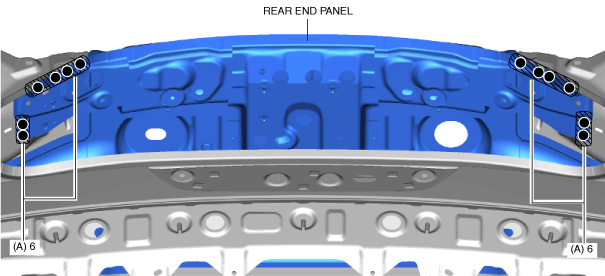

1.  Drill the 12 locations indicated by (A) from the room side shown in the figure.

amxuub00000144

2.  Drill the 20 locations indicated by (B) shown in the figure, then open the end of corner plate.

amxuub00000206

3.  Drill the 25 locations indicated by (C) shown in the figure.

amxzzb00000180

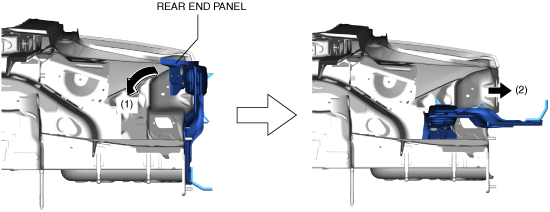

4.  After lowering the rear end panel in the direction of arrow (1) shown in the figure, pull it out in the direction of arrow (2).

amxuub00000146
