SHROUD UPPER PANEL REMOVAL [PANEL REPLACEMENT]

id098008800400

Symbol Marks

amxuub00000168

Removal Procedure

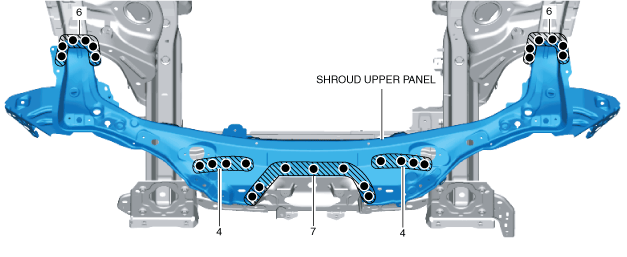

1.  Drill the 27 locations indicated shown in the figure.

amxzzb00000159

2.  Remove the shroud upper panel.
