TRUNK FLOOR PANEL INSTALLATION [PANEL REPLACEMENT]

id098008829600

Symbol Marks

amxuub00000177

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

4.  Insert the trunk floor panel between the rear side frames and slide it in the direction of the arrow shown in the figure.

amxuub00000178

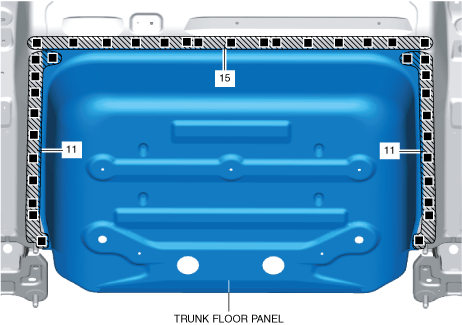

5.  Plug weld the 37 locations indicated shown in the figure, then install the trunk floor panel.
