COWL UPPER PLATE REMOVAL [PANEL REPLACEMENT]

id098008957100

Symbol Marks

amxuub00000183

Removal Procedure

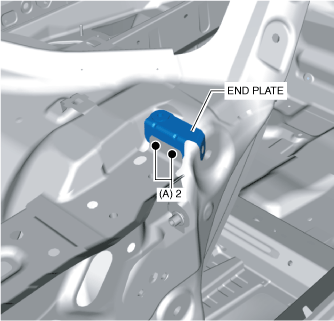

1.  Drill the 2 locations indicated by (A) shown in the figure, then remove the end plate.

amxuub00000184

Note

•  Be careful not to damage the end plate during installation as it will be reused.

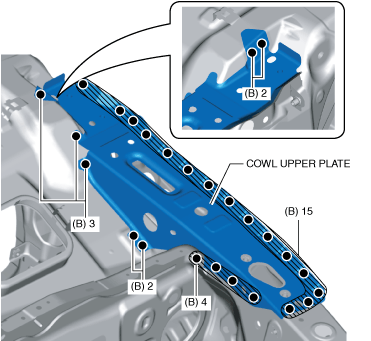

2.  Drill the 26 locations indicated by (B) shown in the figure.

amxuub00000185

3.  Remove the cowl upper plate.
