COWL UPPER PLATE INSTALLATION [PANEL REPLACEMENT]

id098008957200

Symbol Marks

amxuub00000186

Installation Procedure

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for the plug welding before installing the new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

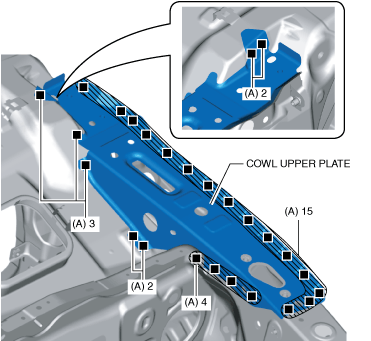

4.  Plug weld the 26 locations indicated by (A) shown in the figure, then install the light cowl upper plate.

amxuub00000187

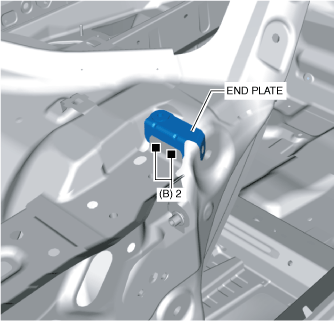

5.  Plug weld the 2 locations indicated by (B) shown in the figure, then install the end plate.

ardjjb00000232
