BUMPER BRACKET REMOVAL [PANEL REPLACEMENT]

id098008999500

Symbol Marks

amxuub00000188

Removal Procedure

1.  Grind the 8 locations indicated shown in the figure.

Caution

•  When grinding 8 locations indicated shown in the figure and the front side frame is damaged, there is a possibility that attachment of a bracket may become difficulty. When grinding indicated shown in the figure, the amount removed will affect the quality of the installation.

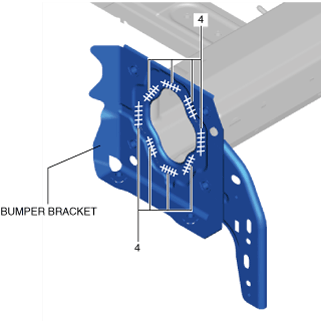

LH

amxzzb00000132

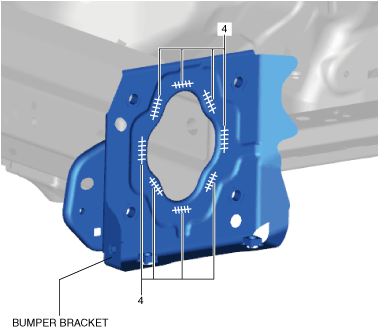

RH

amxzzb00000134

2.  Remove the bumper bracket.
