DAMPING SHEET REPLACEMENT [WATER-PROOF AND RUST PREVENTIVE]

id098009745700

•  After repairing the body, attach the sound damping sheet to the location shown in the figure for noise insulation.

Convertible Top

L.H.D.

amxzzb00000200

R.H.D.

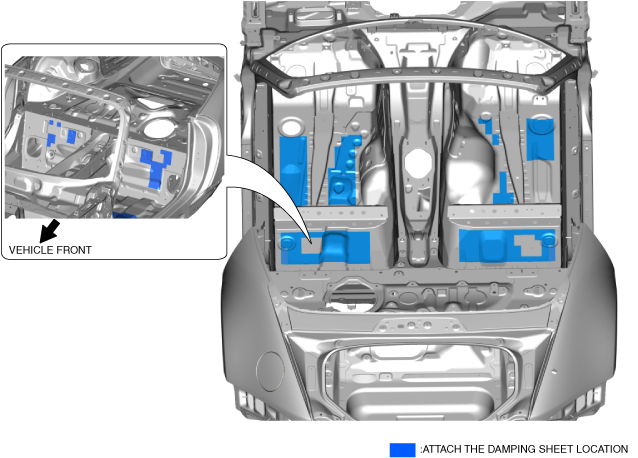

amxzzb00000201

Retractable Hardtop

L.H.D.

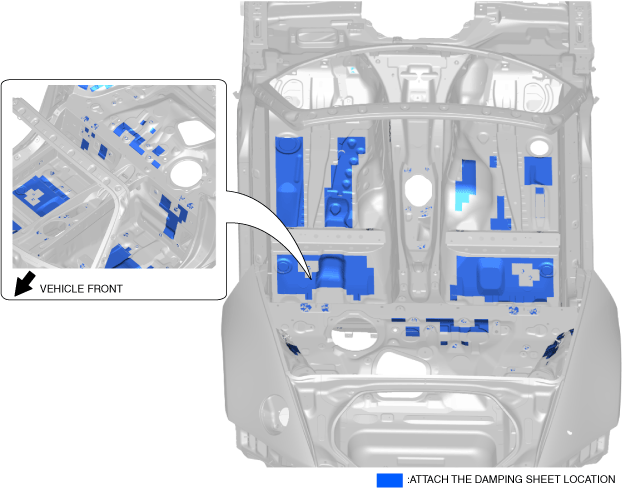

amxzzb00000202

R.H.D.

amxzzb00000203
