UNDERBODY DIMENSIONS [DIMENSIONS]
id098010990000

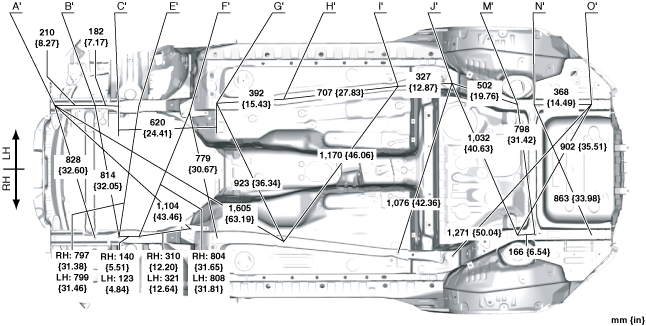

Straight-line dimensions
amxuub00000031
|
Flat-plane dimensions
amxuub00000032
|
amxuub00000033
|
|

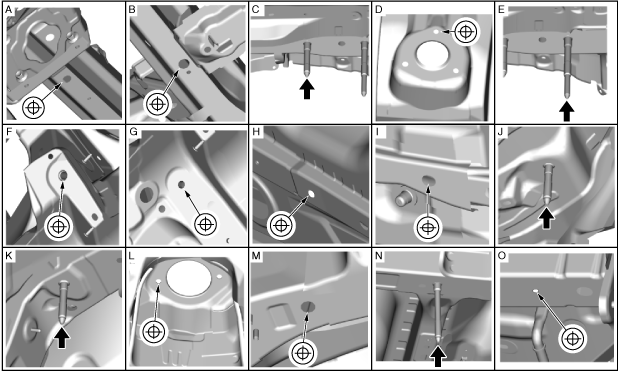

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front frame (outer) datum hole
|
φ16 {0.63}
|
|
B
|
Front frame (outer) datum hole
|
φ16 {0.63}
|
|
C
|
Engine mount installation bolt
|
M14
|
|
D
|
Front suspension mount installation hole
|
φ11 {0.43}
|
|
E
|
Engine mount installation bolt
|
M14
|
|
F
|
Front suspension mount installation nut
|
M14
|
|
G
|
Front frame (rear) datum hole
|
φ12 {0.47}
|
|
H
|
Front B frame datum hole
|
φ16 {0.63}
|
|
I
|
Front B frame datum hole
|
16 × 20 {0.63 × 0.79}
|
|
J
|
Rear crossmember installation bolt
|
M12
|
|
K
|
Rear crossmember installation bolt
|
M12
|
|
L
|
Rear suspension mount installation hole
|
φ12 {0.47}
|
|
M
|
Rear side frame (rear) datum hole
|
φ16 {0.63}
|
|
N
|
Rear crossmember installation bolt
|
M12
|
|
O
|
Rear bumper stay installation nut
|
M6
|
