DETERMINING OPEN CIRCUIT LOCATION (HS-CAN) [R.H.D.]

id100226000400

Caution

• Perform the following malfunction diagnosis only when it is diagnosed with a open circuit by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

• If the malfunctioning part is detected in the communication line, before disconnecting the related connector for inspection, press the connector in the connection direction to verify that there is no looseness or disconnection.

• When disconnecting the connector, verify that there is no damage, deformation, or corrosion of the connector terminals.

1. Verify the CAN system-related module DTCs and the failed module on the M-MDS screen.

2. Apply the communication error DTC and the failed module to DTC output pattern and malfunctioning location, and select the possible cause for the diagnostic result and the reference for the inspection item. (See DTC Output Pattern And Malfunctioning Location.)

Note

• The open circuit location can be determined by the DTC indicated in the DTC output pattern and malfunctioning location chart. DTCs not listed in the chart are not used for the determination of the open circuit location.(See DTC Output Pattern And Malfunctioning Location.)

3. Inspect the possible cause and inspection item of the applicable malfunctioning part.

4. After repairs, return to CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW, and verify that the repairs have been completed.(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

DTC Output Pattern And Malfunctioning Location

Cross (×): Communication error-related DTC and failed module

M-MDS display		DTC output pattern and malfunctioning location
DTC output module	DTC	DTC output pattern and malfunctioning location
PCM (PCM)	U0101:00										×
	U0121:00						×
	U0131:00				×
	U0140:00								×
	U0151:00																				×
	U0155:00																								×
	U0214:00																						×
	U023A:00															×
	U0298:00		×
DCDC^*1 (DC-DC converter (i-ELOOP))	U0100:00	×
	U0140:00								×
	U0151:00																				×
EVP (EVP control unit)	U0100:00	×
	U0100:08	×
	U0121:00						×
	U0121:02						×
	U0121:87						×
	U0155:00																								×
EPS (EPS control module)	U0100:00	×
	U0121:00						×
	U0155:00																								×
ABS (DSC HU/CM)	U0100:00	×				×
	U0101:00										×
	U012B:00			×		×
	U0131:00				×	×
	U0151:00																				×
	U0155:00																								×
BCM (BCM)	U0100:00	×				×		×
	U0101:00										×
	U0121:00						×	×
	U0151:00																				×
	U0155:00																								×
	U0214:00																						×
	U023A:00															×
TCM^*2 (TCM)	U0100:00	×				×		×		×
	U0121:00						×	×		×
	U0131:00				×	×		×		×
	U0155:00																								×
	U0214:00																						×
RHT (Retractable hardtop control module)	U0100:00	×				×		×		×		×
	U0101:00										×	×
	U0155:00																								×
FSC^*4 (Forward sensing camera (FSC))	U0100:00	×				×		×		×		×			×
	U0121:00						×	×		×		×			×
	U0131:00				×	×		×		×		×			×
	U0140:00								×	×		×			×
	U0155:00																								×
	U0182:00																		×
	U0214:00																						×
CMU^*5 (Connectivity master unit (CMU))	U0100:00	×				×		×		×		×			×		×
	U0101:00										×	×			×		×
	U0121:00						×	×		×		×			×		×
	U0131:00				×	×		×		×		×			×		×
	U0140:00								×	×		×			×		×
	U0151:00																				×
	U0155:00																								×
	U0182:00																		×
	U0214:00																						×
	U023A:00															×	×
AFS / ALM (AFS control module^*6)	U0100:00	×				×		×		×		×			×		×
	U0131:00				×	×		×		×		×			×		×
	U0140:00								×	×		×			×		×
	U0155:00																								×
AFS / ALM (Auto leveling control module^*7)	U0100:00	×				×		×		×		×			×		×
	U0140:00								×	×		×			×		×
	U0155:00																								×
AFS / ALM (Adaptive LED headlights control module^*8)	U0100:00	×				×		×		×		×			×		×
	U0121:00						×	×		×		×			×		×
	U0131:00				×	×		×		×		×			×		×
	U0140:00								×	×		×			×		×
	U0155:00																								×
	U0214:00																						×
	U023A:00															×	×
RCM (SAS control module)	U0100:00	×				×		×		×		×			×		×			×
	U0101:00										×	×			×		×			×
	U0155:00																								×
SSU (Start stop unit)	U0100:00	×				×		×		×		×			×		×			×		×
	U0101:00										×	×			×		×			×		×
	U0121:00						×	×		×		×			×		×			×		×
	U0121:87						×	×		×		×			×		×			×		×
	U0131:00				×	×		×		×		×			×		×			×		×
	U0140:00								×	×		×			×		×			×		×
	U0146:00								×	×		×			×		×			×		×
	U0151:00																				×	×
	U0155:00																								×
IC (Instrument cluster)	U0100:00	×				×		×		×		×			×		×			×		×		×
	U0101:00										×	×			×		×			×		×		×
	U0121:00						×	×		×		×			×		×			×		×		×
	U012B:00			×		×		×		×		×			×		×			×		×		×
	U0131:00				×	×		×		×		×			×		×			×		×		×
	U0140:00								×	×		×			×		×			×		×		×
	U0151:00																				×	×		×
	U0156:00																	×		×		×		×
	U0182:00																		×	×		×		×
	U0214:00																						×	×
	U0207:00													×
	U023A:00															×	×			×		×		×
	U0298:00		×			×		×		×		×			×		×			×		×		×
M-MDS display module		[Fail] display pattern
PCM		×				×		×		×		×			×		×			×		×		×
DCDC^*1			×			×		×		×		×			×		×			×		×		×
EVP				×		×		×		×		×			×		×			×		×		×
EPS					×	×		×		×		×			×		×			×		×		×
ABS							×	×		×		×			×		×			×		×		×
BCM									×	×		×			×		×			×		×		×
TCM^*2											×	×			×		×			×		×		×
AMP^*3													×		×		×			×		×		×
RHT														×	×		×			×		×		×
FSC^*4																×	×			×		×		×
CMU^*5																		×		×		×		×
AFS / ALM^{6, 7, *8}																			×	×		×		×
RCM																					×	×		×
SSU																							×	×
IC																									×
Diagnostic result
Possible cause and inspection item		A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V	W	X

*1 :With i-ELOOP

*2 :AT

*3 :With Bose^® type audio

*4 :With forward sensing camera (FSC)

*5 :With center display

*6 :With adaptive front lighting system (AFS)

*7 :With headlight auto leveling system

*8 :With With adaptive LED headlights system

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• PCM power supply voltage or body ground malfunction

• Open circuit in wiring harness between PCM and branch A

• PCM malfunction

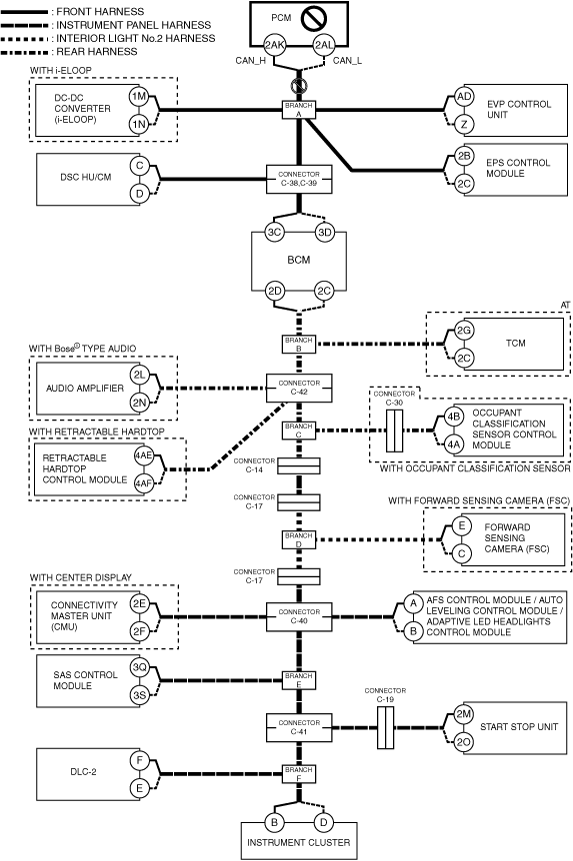

System wiring diagram

amxzzw00004134

Inspection item

• PCM power supply voltage or body ground malfunction

• PCM body ground related wiring harness

• PCM connector

• Wiring harness between PCM terminal 2AK and branch A

• Wiring harness between PCM terminal 2AL and branch A

• PCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• DC-DC converter (i-ELOOP) power supply voltage or body ground malfunction

• Open circuit in wiring harness between DC-DC converter (i-ELOOP) and branch A

• DC-DC converter (i-ELOOP) malfunction

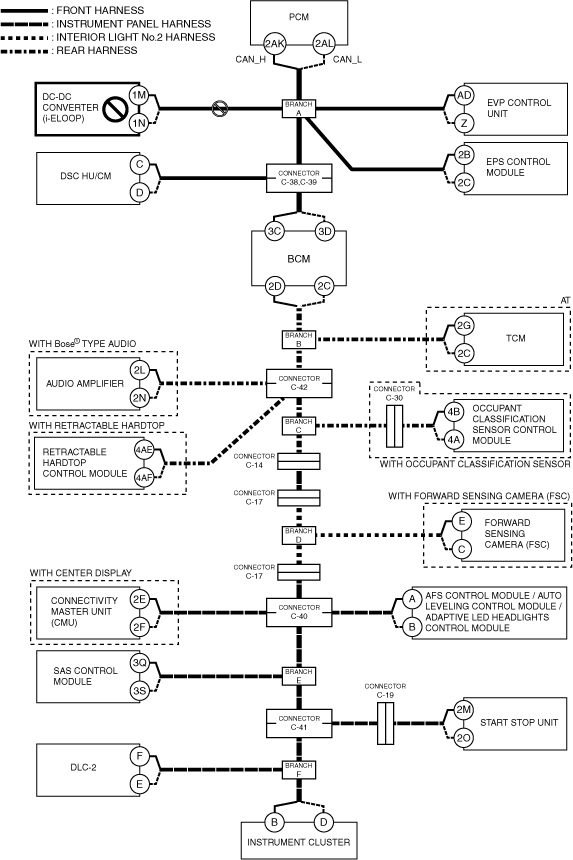

System wiring diagram

amxzzw00004135

Inspection item

• DC-DC converter (i-ELOOP) power supply voltage or body ground malfunction

• DC-DC converter (i-ELOOP) body ground related wiring harness

• DC-DC converter (i-ELOOP) connector

• Wiring harness between DC-DC converter (i-ELOOP) terminal 1M and branch A

• Wiring harness between DC-DC converter (i-ELOOP) terminal 1N and branch A

• DC-DC converter (i-ELOOP)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• EVP control unit power supply voltage or body ground malfunction

• Open circuit in wiring harness between EVP control unit and branch A

• EVP control unit malfunction

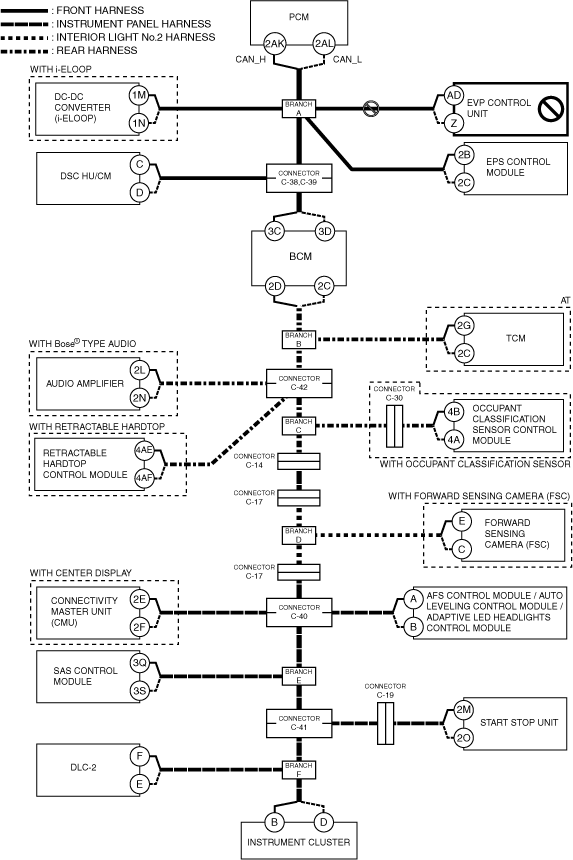

System wiring diagram

amxzzw00004136

Inspection item

• EVP control unit power supply voltage or body ground malfunction

• EVP control unit body ground related wiring harness

• EVP control unit connector

• Wiring harness between EVP control unit terminal AD and branch A

• Wiring harness between EVP control unit terminal Z and branch A

• EVP control unit

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• EPS control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between EPS control module and branch A

• EPS control module malfunction

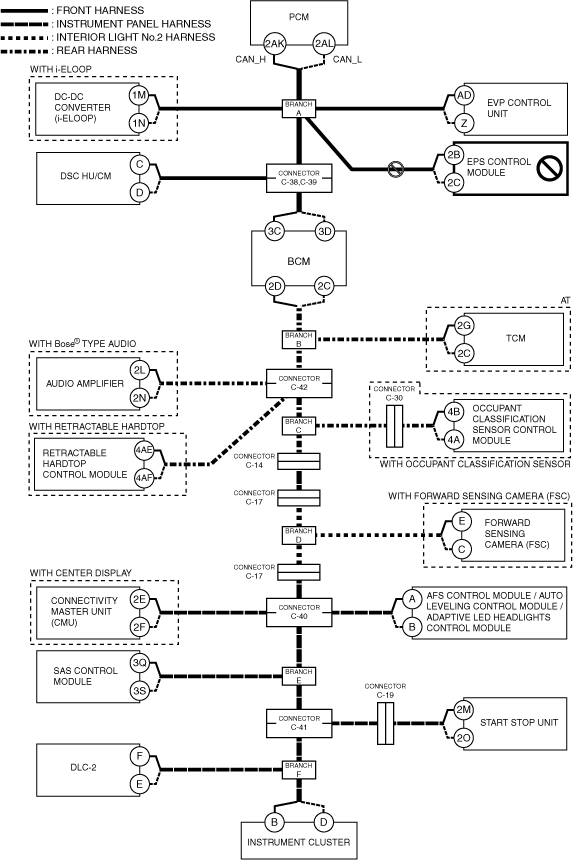

System wiring diagram

amxzzw00004137

Inspection item

• EPS control module power supply voltage or body ground malfunction

• EPS control module body ground related wiring harness

• EPS control module connector

• Wiring harness between EPS control module terminal 2B and branch A

• Wiring harness between EPS control module terminal 2C and branch A

• EPS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch A and connectors C-38,C-39

• Connectors C-38,C-39 malfunction

System wiring diagram

amxzzw00004138

Inspection item

• Connectors C-38,C-39

• Wiring harness between branch A and connectors C-38,C-39

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• DSC HU/CM power supply voltage or body ground malfunction

• Open circuit in wiring harness between DSC HU/CM and connectors C-38,C-39

• Connectors C-38,C-39 malfunction

• DSC HU/CM malfunction

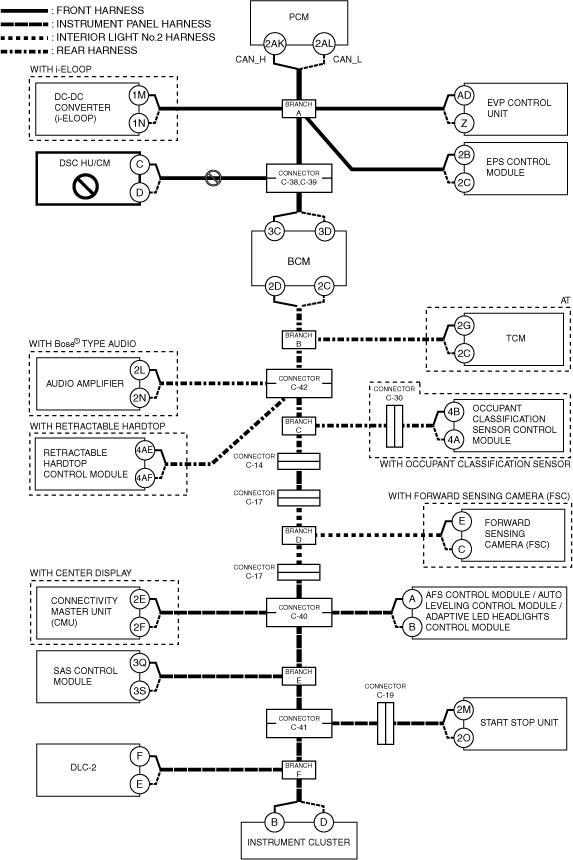

System wiring diagram

amxzzw00004139

Inspection item

• DSC HU/CM power supply voltage or body ground malfunction

• DSC HU/CM body ground related wiring harness

• DSC HU/CM connector

• Connectors C-38,C-39

• Wiring harness between DSC HU/CM terminal C and connector C-38

• Wiring harness between DSC HU/CM terminal D and connector C-39

• DSC HU/CM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connectors C-38,C-39 and BCM

• Connectors C-38,C-39 malfunction

• CAN circuit in BCM malfunction

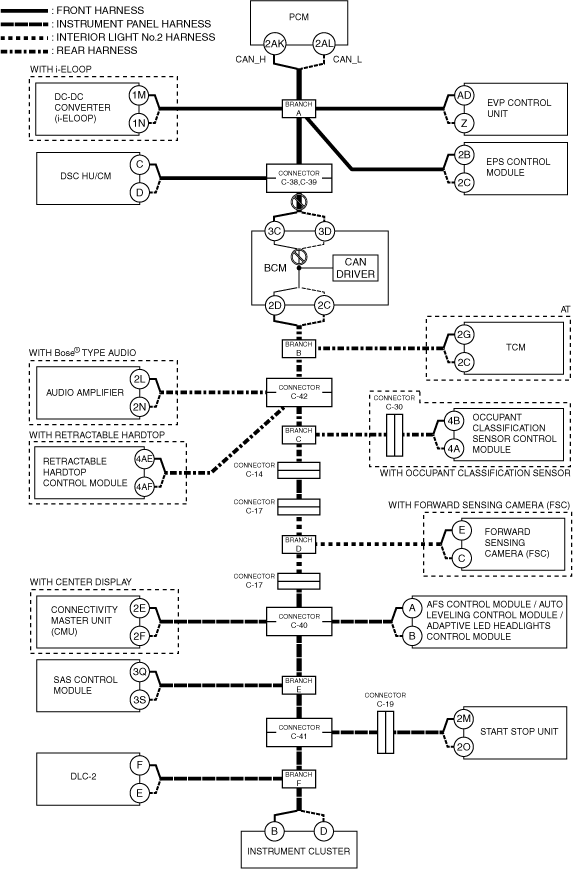

System wiring diagram

amxzzw00004140

Inspection item

• Connectors C-38,C-39

• BCM connector

• Wiring harness between BCM terminal 3C and connector C-38

• Wiring harness between BCM terminal 3D and connector C-39

• BCM

― Between BCM terminal 3C and BCM terminal 2D

― Between BCM terminal 3D and BCM terminal 2C

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• BCM power supply voltage or body ground malfunction

• BCM malfunction

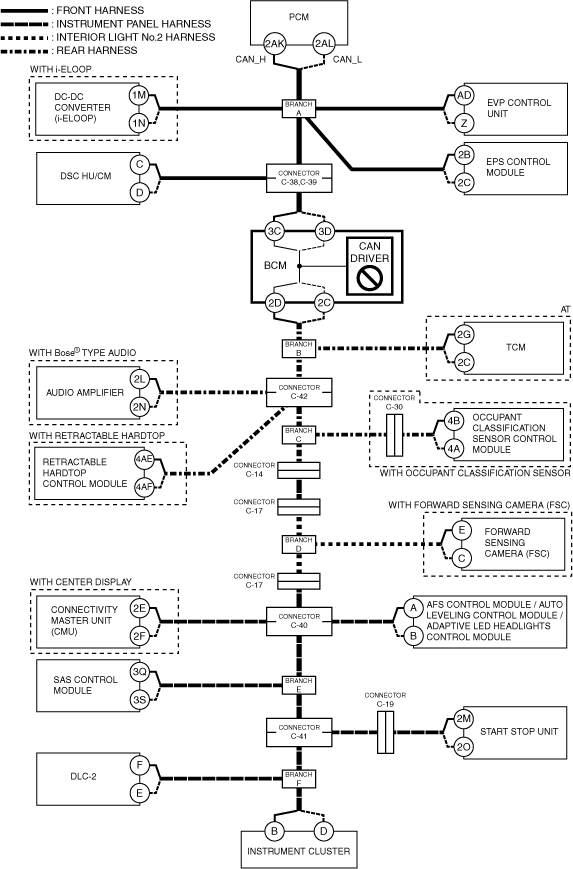

System wiring diagram

amxzzw00004141

Inspection item

• BCM power supply voltage or body ground malfunction

• BCM body ground related wiring harness

• BCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between BCM and branch B

• CAN circuit in BCM malfunction

System wiring diagram

amxzzw00004142

Inspection item

• BCM connector

• Wiring harness between BCM terminal 2D and branch B

• Wiring harness between BCM terminal 2C and branch B

• BCM

― Between BCM terminal 3C and BCM terminal 2D

― Between BCM terminal 3D and BCM terminal 2C

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between BCM and connector C-42

• Connector C-42 malfunction

• CAN circuit in BCM malfunction

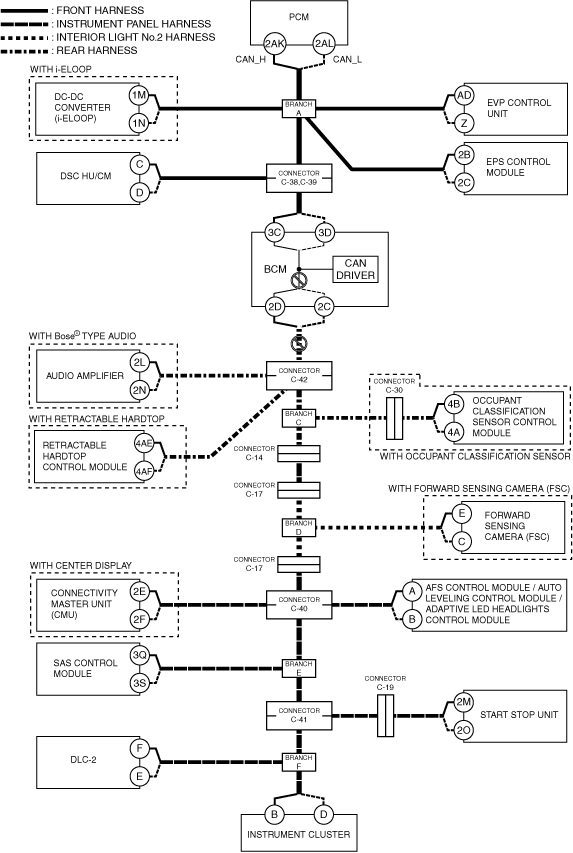

System wiring diagram

amxzzw00004143

Inspection item

• BCM connector

• Connector C-42

• Wiring harness between BCM terminal 2D and connector C-42

• Wiring harness between BCM terminal 2C and connector C-42

• BCM

― Between BCM terminal 3C and BCM terminal 2D

― Between BCM terminal 3D and BCM terminal 2C

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• TCM power supply voltage or body ground malfunction

• Open circuit in wiring harness between TCM and branch B

• TCM malfunction

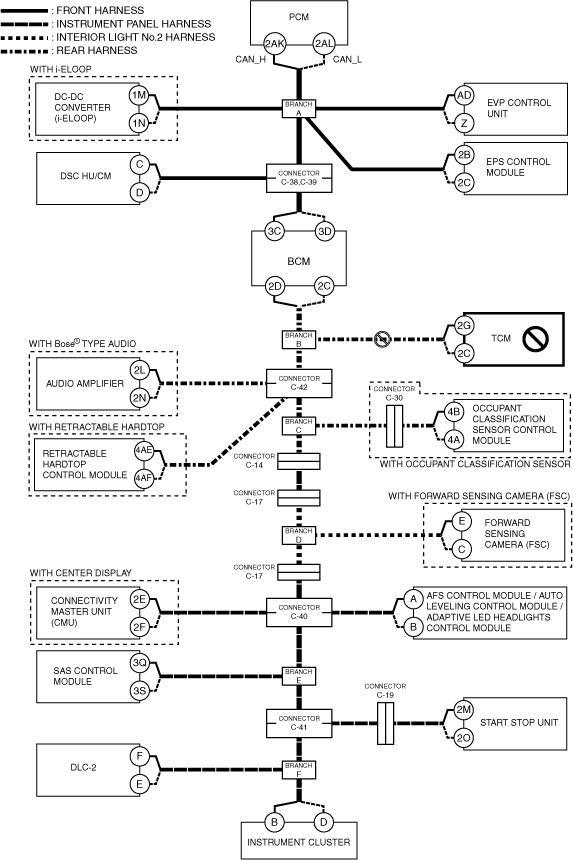

System wiring diagram

amxzzw00004144

Inspection item

• TCM power supply voltage or body ground malfunction

• TCM body ground related wiring harness

• TCM connector

• Wiring harness between TCM terminal 2G and branch B

• Wiring harness between TCM terminal 2C and branch B

• TCM

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch B and connector C-42

• Connector C-42 malfunction

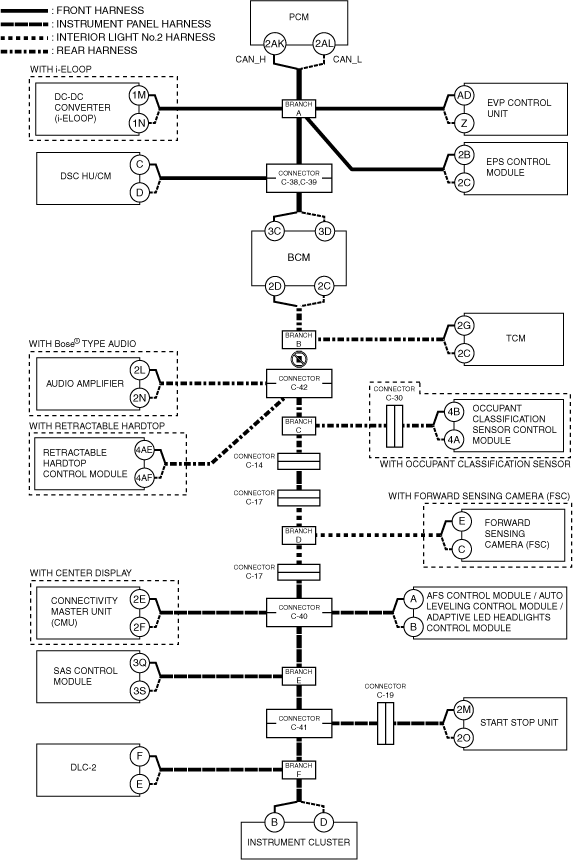

System wiring diagram

amxzzw00004145

Inspection item

• Connector C-42

• Wiring harness between branch B and connector C-42

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Audio amplifier power supply voltage or body ground malfunction

• Open circuit in wiring harness between audio amplifier and connector C-42

• Audio amplifier malfunction

System wiring diagram

amxzzw00004146

Inspection item

• Audio amplifier power supply voltage or body ground malfunction

• Audio amplifier body ground related wiring harness

• Audio amplifier connector

• Wiring harness between audio amplifier terminal 2L and connector C-42

• Wiring harness between audio amplifier terminal 2N and connector C-42

• Audio amplifier

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Retractable hardtop control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between retractable hardtop control module and connector C-42

• Retractable hardtop control module malfunction

System wiring diagram

amxzzw00004147

Inspection item

• Retractable hardtop control module power supply voltage or body ground malfunction

• Retractable hardtop control module body ground related wiring harness

• Retractable hardtop control module connector

• Wiring harness between retractable hardtop control module terminal 4AE and connector C-42

• Wiring harness between retractable hardtop control module terminal 4AF and connector C-42

• Retractable hardtop control module

With occupant classification sensor

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-42 and branch C

• Connector C-42 malfunction

System wiring diagram

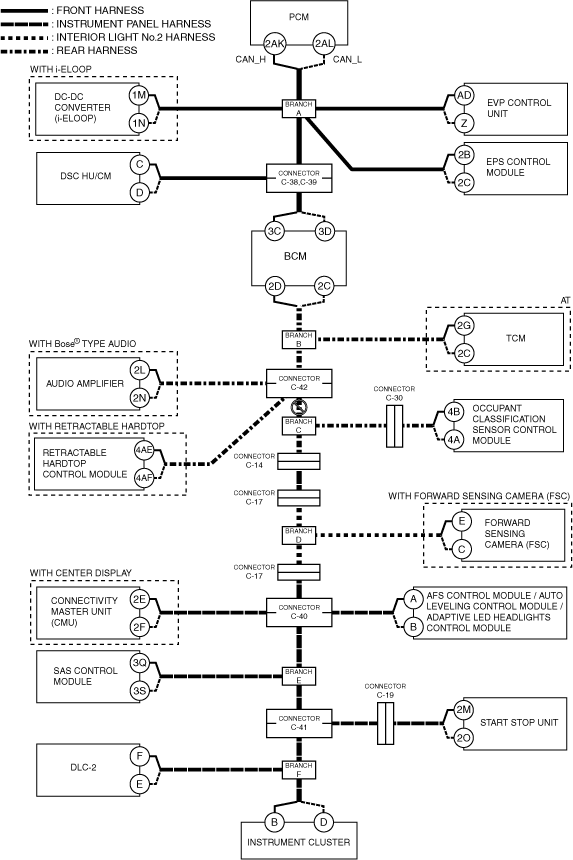

amxzzw00004148

Inspection item

• Connector C-42

• Wiring harness between connector C-42 and branch C

Without occupant classification sensor and with forward sensing camera (FSC)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-42 and connector C-14

• Open circuit in wiring harness between connector C-14 and connector C-17

• Open circuit in wiring harness between connector C-17 and branch D

• Connector C-42 malfunction

• Connector C-14 malfunction

• Connector C-17 malfunction

System wiring diagram

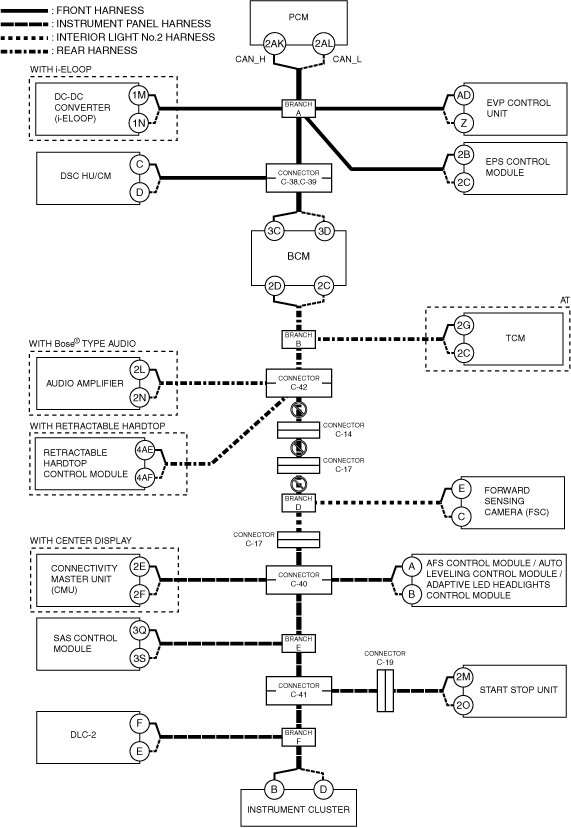

amxzzw00004149

Inspection item

• Connector C-42

• Connector C-14

• Connector C-17

• Wiring harness between connector C-42 and connector C-14

• Wiring harness between connector C-14 and connector C-17

• Wiring harness between connector C-17 and branch D

Without occupant classification sensor and without forward sensing camera (FSC)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-42 and connector C-14

• Open circuit in wiring harness between connector C-14 and connector C-17

• Open circuit in wiring harness between connector C-17 and connector C-17

• Open circuit in wiring harness between connector C-17 and connector C-40

• Connector C-42 malfunction

• Connector C-14 malfunction

• Connector C-17 malfunction

• Connector C-40 malfunction

System wiring diagram

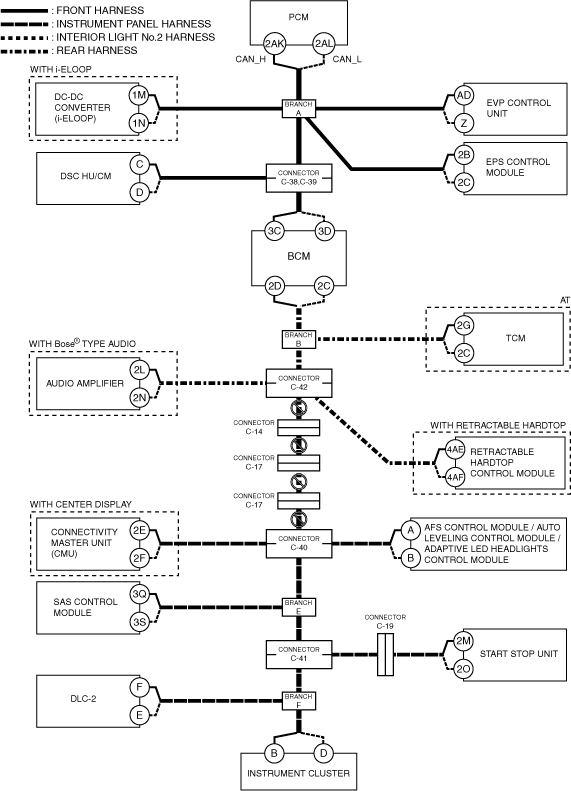

amxzzw00004374

Inspection item

• Connector C-42

• Connector C-14

• Connector C-17

• Connector C-40

• Wiring harness between connector C-42 and connector C-14

• Wiring harness between connector C-14 and connector C-17

• Wiring harness between connector C-17 and connector C-17

• Wiring harness between connector C-17 and connector C-40

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Forward sensing camera (FSC) power supply voltage or body ground malfunction

• Open circuit in wiring harness between forward sensing camera (FSC) and branch D

• Forward sensing camera (FSC) malfunction

System wiring diagram

amxzzw00004151

Inspection item

• Forward sensing camera (FSC) power supply voltage or body ground malfunction

• Forward sensing camera (FSC) body ground related wiring harness

• Forward sensing camera (FSC) connector

• Wiring harness between forward sensing camera (FSC) terminal E and branch D

• Wiring harness between forward sensing camera (FSC) terminal C and branch D

• Forward sensing camera (FSC)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch D and connector C-17

• Open circuit in wiring harness between connector C-17 and connector C-40

• Connector C-17 malfunction

• Connector C-40 malfunction

System wiring diagram

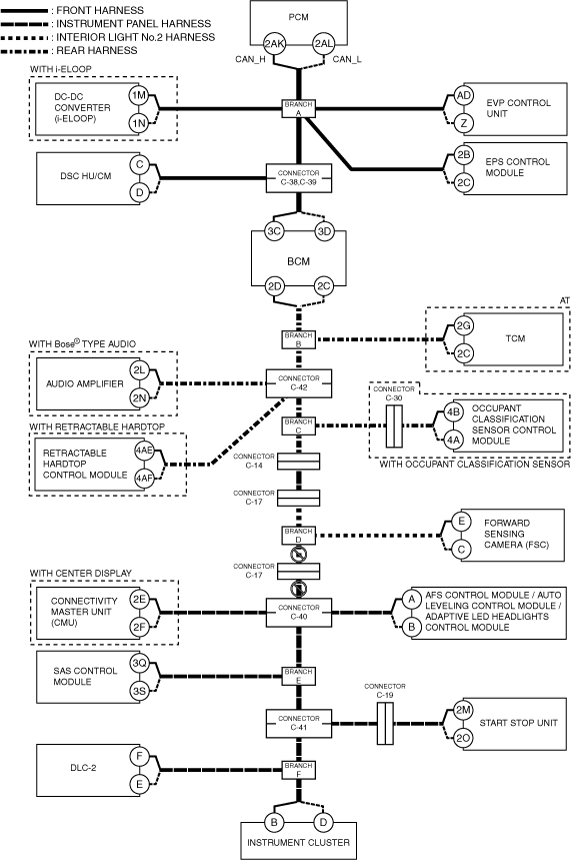

amxzzw00004152

Inspection item

• Connector C-17

• Connector C-40

• Wiring harness between branch D and connector C-17

• Wiring harness between connector C-17 and connector C-40

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Connectivity master unit (CMU) power supply voltage or body ground malfunction

• Wiring harness between connectivity master unit (CMU) and connector C-40

• Connector C-40 malfunction

• Connectivity master unit (CMU) malfunction

System wiring diagram

amxzzw00004153

Inspection item

• Connectivity master unit (CMU) power supply voltage or body ground malfunction

• Connectivity master unit (CMU) body ground related wiring harness

• Connectivity master unit (CMU) connector

• Connector C-40

• Wiring harness between connectivity master unit (CMU) terminal 2E and connector C-40

• Wiring harness between connectivity master unit (CMU) terminal 2F and connector C-40

• Connectivity master unit (CMU)

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• AFS control module / auto leveling control module / adaptive LED headlights control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between AFS control module / auto leveling control module / adaptive LED headlights control module and connector C-40

• Connector C-40 malfunction

• AFS control module / auto leveling control module / adaptive LED headlights control module malfunction

System wiring diagram

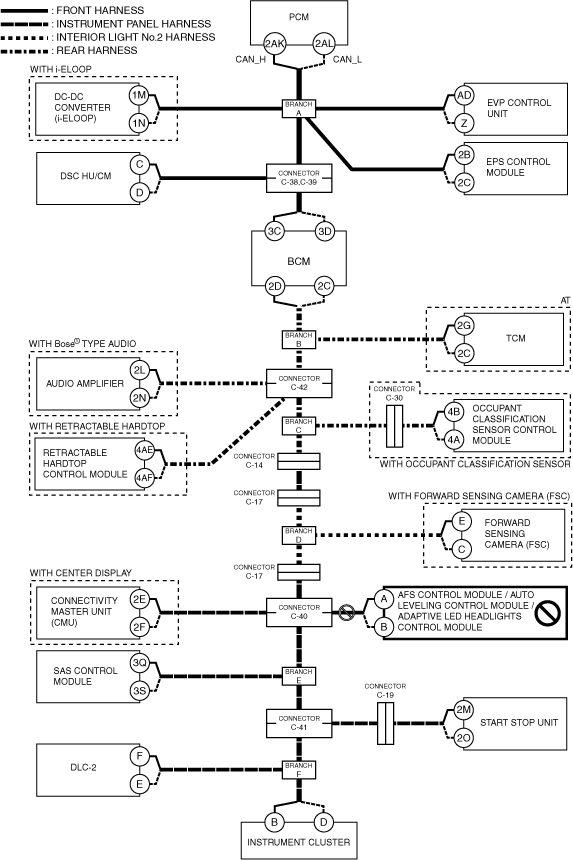

amxzzw00004154

Inspection item

• AFS control module / auto leveling control module / adaptive LED headlights control module power supply voltage or body ground malfunction

• AFS control module / auto leveling control module / adaptive LED headlights control module body ground related wiring harness

• AFS control module / auto leveling control module / adaptive LED headlights control module connector

• Connector C-40

• Wiring harness between AFS control module / auto leveling control module / adaptive LED headlights control module terminal A and connector C-40

• Wiring harness between AFS control module / auto leveling control module / adaptive LED headlights control module terminal B and connector C-40

• AFS control module / auto leveling control module / adaptive LED headlights control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-40 and branch E

• Connector C-40 malfunction

System wiring diagram

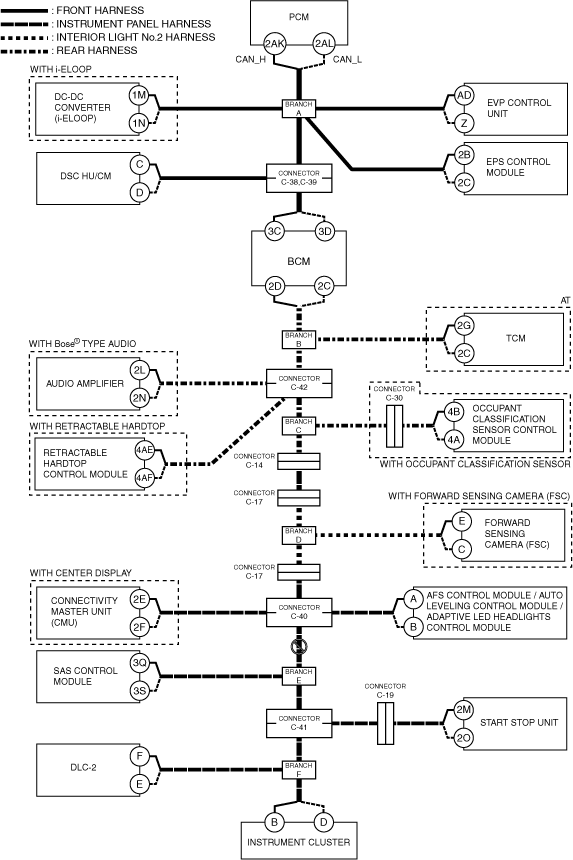

amxzzw00004155

Inspection item

• Connector C-40

• Wiring harness between connector C-40 and branch E

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• SAS control module power supply voltage or body ground malfunction

• Open circuit in wiring harness between SAS control module and branch E

• SAS control module malfunction

System wiring diagram

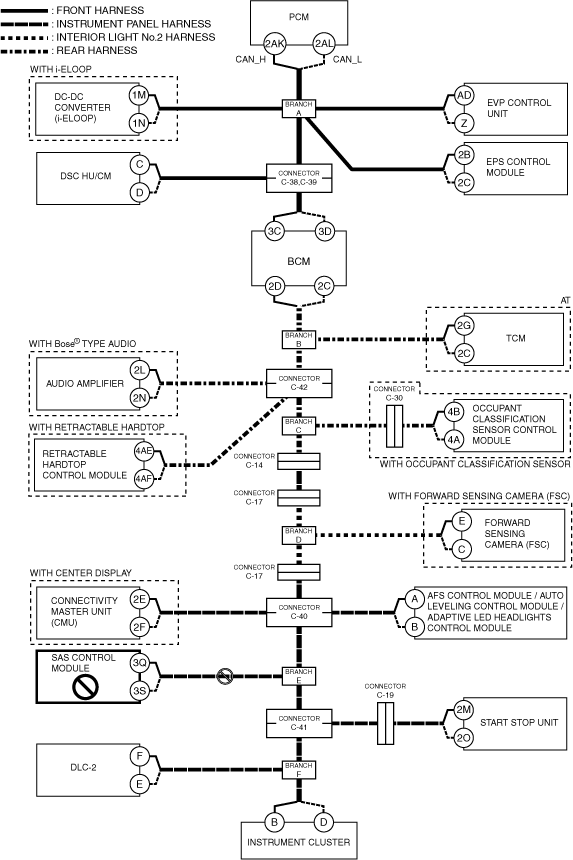

amxzzw00004156

Inspection item

Warning

• Handling the component parts of the SRS air bag system improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. To prevent this, always read the SRS air bag system service warnings and cautions before handling the SRS air bag system components.

(See AIR BAG SYSTEM SERVICE WARNINGS.)

(See AIR BAG SYSTEM SERVICE CAUTIONS.)

• SAS control module power supply voltage or body ground malfunction

• SAS control module body ground related wiring harness

• SAS control module connector

• Wiring harness between SAS control module terminal 3Q and branch E

• Wiring harness between SAS control module terminal 3S and branch E

• SAS control module

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between branch E and connector C-41

• Connector C-41 malfunction

System wiring diagram

amxzzw00004157

Inspection item

• Connector C-41

• Wiring harness between branch E and connector C-41

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Start stop unit power supply voltage or body ground malfunction

• Open circuit in wiring harness between start stop unit and connector C-19

• Open circuit in wiring harness between connector C-19 and connector C-41

• Connector C-19 malfunction

• Connector C-41 malfunction

• Start stop unit malfunction

System wiring diagram

amxzzw00004158

Inspection item

• Start stop unit power supply voltage or body ground malfunction

• Start stop unit body ground related wiring harness

• Start stop unit connector

• Connector C-19

• Connector C-41

• Wiring harness between connector C-19 and connector C-41

• Wiring harness between start stop unit terminal 2M and connector C-19

• Wiring harness between start stop unit terminal 2O and connector C-19

• Start stop unit

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Open circuit in wiring harness between connector C-41 and branch F

• Connector C-41 malfunction

System wiring diagram

amxzzw00004159

Inspection item

• Connector C-41

• Wiring harness between connector C-41 and branch F

Possible cause

• Connector terminal disconnection, poor contact, damage, deformation, corrosion

• Instrument cluster power supply voltage or body ground malfunction

• Open circuit in wiring harness between instrument cluster and branch F

• Instrument cluster malfunction

System wiring diagram

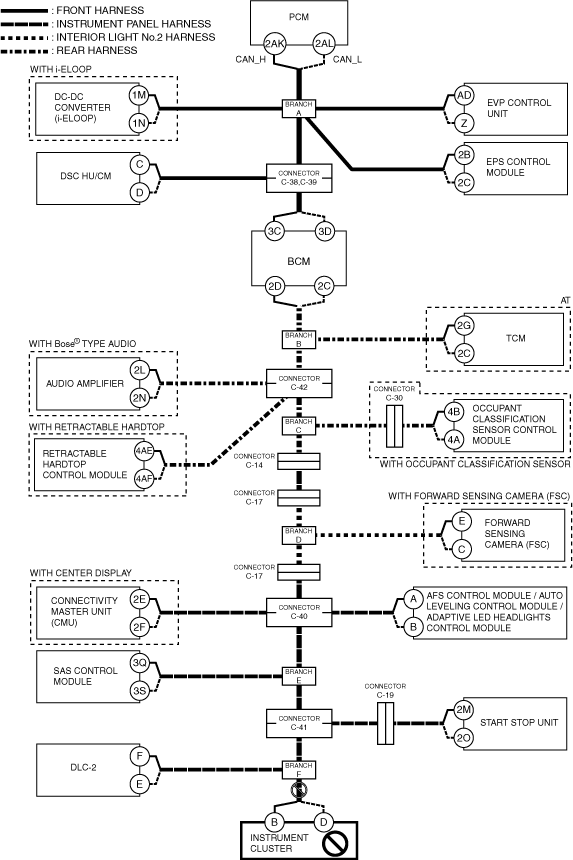

amxzzw00004160

Inspection item

• Instrument cluster power supply voltage or body ground malfunction

• Instrument cluster body ground related wiring harness

• Instrument cluster connector

• Wiring harness between instrument cluster terminal B and branch F

• Wiring harness between instrument cluster terminal D and branch F

• Instrument cluster
