DC-DC CONVERTER (i-ELOOP) REMOVAL/INSTALLATION [i-ELOOP]

id131704009000


Procedure Before i-ELOOP-Related Part Servicing

Warning
•  If the terminal of one of the i-ELOOP-related parts contacts the vehicle body with the service plug of the capacitor connected, it could cause a fire and damage to electrical parts. In addition, if the terminal contacts your body, it could cause electrocution. Disconnect the service plug of the capacitor before disconnecting the i-ELOOP-related part terminal. (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP].)
―  For the i-ELOOP-related part terminals, refer to the “PROCEDURE BEFORE i-ELOOP-RELATED PART SERVICING”. (See PROCEDURE BEFORE i-ELOOP-RELATED PART SERVICING [i-ELOOP].)

DC-DC Converter (i-ELOOP) Removal/Installation

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Disconnect the service plug. (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP].)

3.  Remove the air cleaner, air hose, and resonance chamber No.1 as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.5, SKYACTIV-G 2.0].)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

6.  If the DC-DC converter (i-ELOOP) is replaced with a new one, verify if the capacitor voltage (PID: CAP_V) is more than the minimum value using the M-MDS data monitor function.

•  If the capacitor voltage is less than the minimum value, charge the capacitor. (See CAPACITOR (i-ELOOP) RECHARGING [i-ELOOP].)
Capacitor voltage minimum value
9.5V

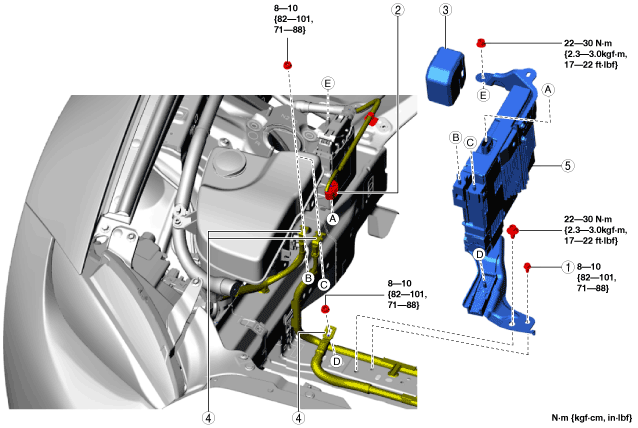

amxzzw00003002

1
Ground bolt
2
DC-DC converter connector, wiring harness clip
3
Terminal cover
4
Cable terminal
5
DC-DC converter (i-ELOOP)
(See DC-DC converter (i-ELOOP) installation note.)


DC-DC converter (i-ELOOP) installation note

1.  Set the DC-DC converter (i-ELOOP) to the installation position.

2.  Tighten the nut and bolt in the order shown in the figure.

amxzzw00003003

Tightening torque
22—30 N·m {2.3—3.0 kgf·m, 17—22 ft·lbf}


DC-DC Converter (i-ELOOP) Disassembly/Assembly

1.  When replacing the DC-DC converter (i-ELOOP) with a new one, remove the following parts.

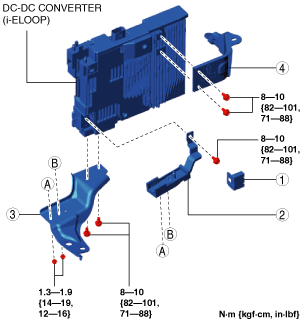

amxzzw00003004

1
Cover
2
Bus bar
3
Bracket (lower)
4
Bracket (upper)
