ON-BOARD DIAGNOSTIC [FORWARD SENSING CAMERA (FSC)]

id1502006955a3


Outline

•  The on-board diagnostic function consists of the following functions:
―  A malfunction detection function, which detects overall malfunctions in the forward sensing camera (FSC)-related parts.
―  A memory function, which stores detected DTCs.
―  A display function, which indicates malfunction locations and status via DTC output.
―  A PID/data monitoring function, which reads out specific input/output signals and verifies the input/output condition.
•  Using the Mazda Modular Diagnostic System (M-MDS), DTCs can be read out and deleted, and the PID/data monitoring function can be activated.

Malfunction detection function

•  Detects malfunctions in input/output signals.
•  If a malfunction occurs, the forward sensing camera (FSC) records the malfunction as a DTC. A recorded DTC can be read by the Mazda Modular Diagnostic System (M-MDS).

DTC table

X: Applicable
Not applicable

DTC No.

LDWS warning light

Description

Fail-safe

Drive cycle

Self test type*1

Memory function
B115E:54
Illuminated
Forward sensing camera (FSC) aiming not completed
×
—
C, D
×
B13A6:11
Illuminated
LDWS switch circuit malfunction
×
—
C, D
×
C1001:92
Illuminated
Poor functioning of forward sensing camera (FSC)
×
—
C, D
×
C1001:97
Illuminated
Forward sensing camera (FSC) poor visibility
×
—
C, D
×
U0001:88
Illuminated
Module communication error (HS-CAN)
×
—
C, D
×
U0100:00
Illuminated
Communication error with PCM
×
—
C, D
×
U0121:00
Illuminated
Communication error with DSC HU/CM
×
—
C, D
×
U0131:00
Illuminated
Communication error with electric power steering (EPS) control module
×
—
C, D
×
U0140:00
Illuminated
Communication error with BCM
×
—
C, D
×
U0155:00
Illuminated
Communication error with instrument cluster
×
—
C, D
×
U0182:00*2
—
Communication error with adaptive LED headlights control module
×
—
C, D
×
U0214:00
Illuminated
Communication error with start stop unit
×
—
C, D
×
U0401:68
Illuminated
Error signal received from PCM
×
—
C, D
×
U0415:68
Illuminated
Error signal received from DSC HU/CM
×
—
C, D
×
U0420:68
Illuminated
Error signal received from electric power steering (EPS) control module
×
—
C, D
×
U0423:68
Illuminated
Error signal received from instrument cluster
×
—
C, D
×
U0483:68*2
—
Error signal received from adaptive LED headlights control module
×
—
C, D
×
U0515:68
Illuminated
Error signal received from start stop unit
×
—
C, D
×
U2005:86
Illuminated
Error signal received from PCM
×
—
C, D
×
U2100:00
Illuminated
Forward sensing camera (FSC) configuration error
×
—
C, D
×
U2101:00
Illuminated
Forward sensing camera (FSC) configuration error
×
—
C, D
×
U3000:04
Illuminated
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3000:09
Illuminated
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3000:42
Illuminated
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3000:49
Illuminated
Forward sensing camera (FSC) internal malfunction
×
—
C, D
×
U3003:16
Illuminated
Forward sensing camera (FSC) low power supply voltage input
×
—
C, D
×
U3003:17
Illuminated
Forward sensing camera (FSC) high power supply voltage input
×
—
C, D
×

*1  :C: CMDTC self test, D: ODDTC self test
*2  :With adaptive LED headlights

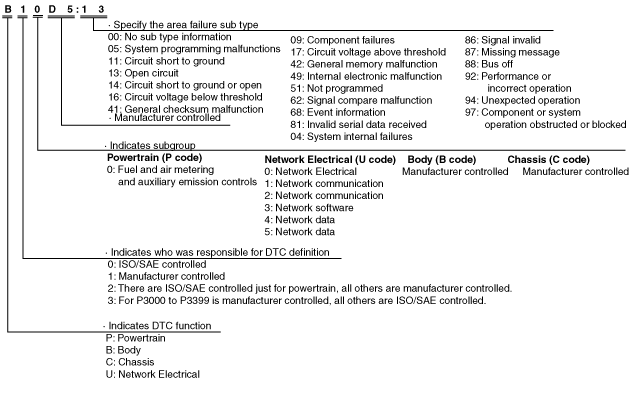

DTC 7-digit code definition

•  When related systems or components have failed, the CM stores the DTC of the malfunctioning part in the CM memory, and allows for the retrieval of the store data using scanning tool when necessary. The DTCs are indicated using seven digits. Each digit indicates the following.
ac5wzn00001569


Status byte for DTC

•  The two digits (two digits after hyphen (-)) after the 7-digit DTC.
ac5wzn00002011
•  A code which indicates the pending code, current/past malfunction status, or warning illumination status.
•  Can be read by performing a CMDTC self-test using the Mazda Modular Diagnostic System (M-MDS).
•  For details on the status byte, refer to the explanation on the Mazda Modular Diagnostic System (M-MDS) when reading the DTC.


Detection condition for the applicable DTC

DTC No.

Description

Detection condition
B115E:54
Forward sensing camera (FSC) aiming not completed
•  Forward sensing camera (FSC) aiming not completed is detected.
B13A6:11
LDWS switch circuit malfunction
•  Forward sensing camera (FSC) detects that LDWS switch is held pressed for 10 s or more.
C1001:92
Poor functioning of forward sensing camera (FSC)
•  With the LDWS switch on or the high beam control (HBC) system operating, the forward sensing camera (FSC) detects that its field of view is poor for a certain period of time.
C1001:97
Forward sensing camera (FSC) poor visibility
•  With the LDWS switch on or the high beam control (HBC) system operating, the forward sensing camera (FSC) detects that its field of view is obstructed for a certain period of time.
U0001:88
Module communication error (HS-CAN)
•  Forward sensing camera (FSC) cannot receive the CAN bus communication signal (HS-CAN) for 1 s or more.
•  Forward sensing camera (FSC) detects the CAN bus communication line (HS-CAN) malfunction 10 times continuously.
U0100:00
Communication error with PCM
•  Forward sensing camera (FSC) cannot receive the CAN signal from the PCM for 1 s or more.
U0121:00
Communication error with DSC HU/CM
•  Forward sensing camera (FSC) cannot receive the CAN signal from the DSC HU/CM for 1 s or more.
U0131:00
Communication error with electric power steering (EPS) control module
•  Forward sensing camera (FSC) cannot receive the CAN signal from the electric power steering (EPS) control module for 1 s or more.
U0140:00
Communication error with BCM
•  Forward sensing camera (FSC) cannot receive the CAN signal from the BCM for 5 s or more.
U0155:00
Communication error with instrument cluster
•  Forward sensing camera (FSC) cannot receive the CAN signal from the instrument cluster for 5 s or more.
U0182:00
Communication error with adaptive LED headlights control module
•  Forward sensing camera (FSC) cannot receive the CAN signal from the adaptive LED headlights control module for 10 s or more.
U0214:00
Communication error with start stop unit
•  Forward sensing camera (FSC) cannot receive the CAN signal from the start stop unit for 1 s or more.
U0401:68
Error signal received from PCM
•  Forward sensing camera (FSC) receives the error signal from the PCM for 5 s or more.
U0415:68
Error signal received from DSC HU/CM
•  Forward sensing camera (FSC) receives the error signal from the DSC HU/CM for 5 s or more.
U0420:68
Error signal received from electric power steering (EPS) control module
•  Forward sensing camera (FSC) receives the error signal from the electric power steering (EPS) control module for 5 s or more.
U0423:68
Error signal received from instrument cluster
•  Forward sensing camera (FSC) receives the error signal from the instrument cluster for 5 s or more.
U0483:68
Error signal received from adaptive LED headlights control module
•  Forward sensing camera (FSC) receives the error signal from the adaptive LED headlights control module for 5 s or more.
U0515:68
Error signal received from start stop unit
•  Forward sensing camera (FSC) receives the error signal from the start stop unit for 5 s or more.
U2005:86
Error signal received from PCM
•  Forward sensing camera (FSC) receives the vehicle speed signal error from the PCM for 5 s or more.
U2100:00
Forward sensing camera (FSC) configuration error
•  Forward sensing camera (FSC) configuration not completed is detected.
U2101:00
Forward sensing camera (FSC) configuration error
•  Detects that forward sensing camera (FSC) has unsupported configuration data.
U3000:04
Forward sensing camera (FSC) internal malfunction
•  Forward sensing camera (FSC) detects an error in the image-related circuit in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3000:09
Forward sensing camera (FSC) internal malfunction
•  Forward sensing camera (FSC) detects an internal temperature sensor malfunction in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3000:42
Forward sensing camera (FSC) internal malfunction
•  Forward sensing camera (FSC) detects a NVRAM error in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3000:49
Forward sensing camera (FSC) internal malfunction
•  Forward sensing camera (FSC) detects a malfunction in the forward sensing camera (FSC) with the ignition switched ON (engine off or on).
U3003:16
Forward sensing camera (FSC) low power supply voltage input
•  Forward sensing camera (FSC) power supply circuit voltage of 8.0 ± 0.8 V or less is detected for 5 s or more with the ignition switched ON (engine off or on).
U3003:17
Forward sensing camera (FSC) high power supply voltage input
•  Forward sensing camera (FSC) power supply circuit voltage of 16.0 ± 0.8 V or more is detected for 5 s or more with the ignition switched ON (engine off or on).


Snap shot data

Note
•  The forward sensing camera (FSC) stores the following two types of snapshot data (vehicle information) when a DTC is detected and displays them in the Mazda Modular Diagnostic System (M-MDS).
―  Vehicle information detected by forward sensing camera (FSC)
―  Vehicle information detected by instrument cluster and received by forward sensing camera (FSC) via CAN communication
•  The data for all DTCs currently detected is stored.

—: Not applicable

Snapshot data item

Unit

Data contents

Data read/use method

Corresponding data monitor items
ECU_IN_TMP
°C
°F
ECU internal temperature
—
—
IG-ON_TIMER
hh:mm:ss*1
Elapsed time since ignition was switched ON (engine off or on)
Note
•  The instrument cluster records the elapsed time since the ignition was switched ON (engine off or on).
•  The forward sensing camera (FSC) constantly receives the elapsed time since the ignition was switched ON (engine off or on) sent via CAN communication from the instrument cluster.
•  If a DTC is detected, the forward sensing camera (FSC) records the elapsed time since the ignition was switched ON (engine off or on) when the DTC was detected, and it is displayed in the Mazda Modular Diagnostic System (M-MDS).
—
OPE_MODE
Normal/CALIBRATION/EMERGENCY
Operation mode
—
—
VSPD
KPH
MPH
Vehicle speed
—
—

*1  :The seconds may be indicated after the decimal point.


Data Monitor Function

•  With the PID/data monitor function, the input/output signal monitor items set in the forward sensing camera (FSC) can be selected and read out in real-time.
•  The items which can be selected are as follows.

PID/data monitor table

PID

Unit/Operation

Data contents

Module control terminal
A_ANG_PITCH
° (deg)
Displays vanishing point correction angle (pitch) corrected by forward sensing camera (FSC) when performing forward sensing camera (FSC) aiming using the M-MDS.
C, E (CAN)
A_ANG_ROLL
° (deg)
Displays vanishing point correction angle (roll) corrected by forward sensing camera (FSC) when performing forward sensing camera (FSC) aiming using the M-MDS.
C, E (CAN)
A_ANG_YAW
° (deg)
Displays vanishing point correction angle (yaw) corrected by forward sensing camera (FSC) when performing forward sensing camera (FSC) aiming using the M-MDS.
C, E (CAN)
BRAKE SW
Off/On
•  Off: Brake switch (No. 2 signal) is off. (Brake pedal is not depressed.)
•  On: Brake switch (No. 2 signal) is on. (Brake pedal is depressed.)
C, E (CAN)
DSP LANE ST
Off/Dash Lane/Solid Lane
•  Off: Lane departure warning system (LDWS) is off.
•  Dash Lane: Vehicle lane lines are not recognized.
•  Solid Lane: Vehicle lane lines are recognized at a vehicle speed of 40 km/h {25 mph} or more.
C, E (CAN)
DSP WRN ST
Off/LDWS Left/LDWS Right/LDWS Fail/HBC Fail/Camera BLK/FOW_Warning/FOW_Fail/FSC Fail/Camera DRDT
•  Off: Forward sensing camera (FSC) does not detect malfunction.
•  LDWS Left: Lane departure on vehicle left side is detected.
•  LDWS Right: Lane departure on vehicle right side is detected.
•  LDWS Fail: Malfunction related to lane departure warning system (LDWS) is detected.
•  HBC Fail: Malfunction related to high beam control (HBC) system is detected.
•  Camera BLK: Dirt on camera is detected.
•  FOW_Warning:—
•  FOW_Fail:—
•  FSC Fail: Forward sensing camera (FSC) malfunction is detected.
•  Camera DRDT: Camera fogging is detected.
C, E (CAN)
HBC H/L CS
Hi Request/Low Request/Invalid
•  Hi Request: HI beam switch signal received
•  Low Request: LO beam switch signal received
•  Invalid: Error in HI/LO beam switch request signal
C, E (CAN)
IL ST HBC
Off/Green On/Green Flash/Amber On/Amber Flash
•  Off: HBC indicator light (green) and HBC warning light (amber) turned off
•  Green On: HBC indicator light (green) is illuminated.
•  Green Flash: HBC indicator light (green) is flashing.
•  Amber On: HBC warning light (amber) is illuminated.
•  Amber Flash: HBC warning light (amber) is flashing.
C, E (CAN)
IL ST LDWS
Off/Green On/Green Flash/Amber On/Amber Flash
•  Off: LDWS indicator light (green) and LDWS warning light (amber) turned off
•  Green On: LDWS indicator light (green) illuminated
•  Green Flash: LDWS indicator light (green) is flashing.
•  Amber On: LDWS warning light (amber) is illuminated.
•  Amber Flash: LDWS warning light (amber) is flashing.
C, E (CAN)
LDWS BUZZER
Off/On
•  Off: LDWS warning alarm does not sound.
•  On: LDWS warning alarm sounds.
C, E (CAN)
LDWS SW
Off/On
•  Off: LDWS switch is off.
•  On: LDWS switch is on.
C, E (CAN)
RS SOUND CS*1
Off/Left/Right
•  Off: Rumble strip sound is not heard.
•  Left: Left side rumble strip sound heard.
•  Right: Right side rumble strip sound heard.
C, E (CAN)
VPWR_IG1
V
Displays forward sensing camera (FSC) power supply voltage
I (Power supply)
VSPD
KPH, MPH
Displays vehicle speed
C, E (CAN)

*1  :With center display
