ELECTRICAL SYSTEM

Connectors

Disconnecting connectors

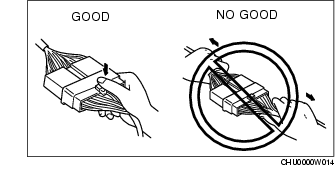

• When disconnecting connector, grasp the connectors, not the wires.

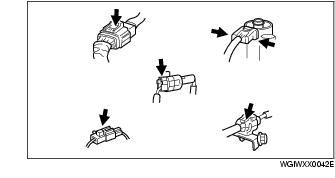

• Connectors can be disconnected by pressing or pulling the lock lever as shown.

Locking connector

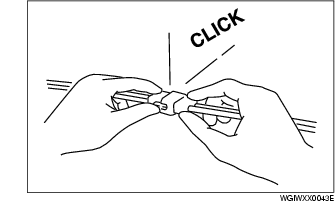

• When locking connectors, listen for a click indicating they are securely locked.

Inspection

• When a tester is used to inspect for continuity or measuring voltage, insert the tester probe from the wiring harness side.

• Inspect the terminals of waterproof connectors from the connector side since they cannot be accessed from the wiring harness side.

Caution

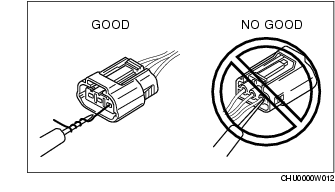

• To prevent damage to the terminal, wrap a thin wire around the tester probe before inserting into terminal.
